Product Description

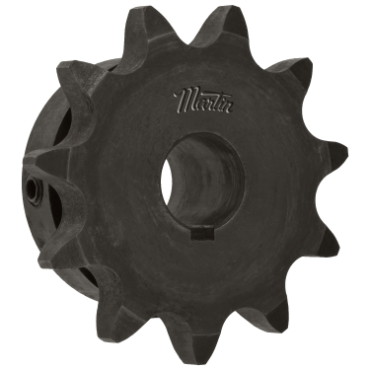

The Martin 60BS16HT17/16 is a finished bore sprocket designed for mechanical power transmission applications. This sprocket is crafted from high carbon steel and is bored to a size of one point four three seven five inches with sixteen teeth. It is ready for shaft installation and features hardened teeth for enhanced durability.
- Finished bore sprocket with hardened teeth
- Precision bored to size with keyways and setscrews included
- Manufactured to meet or exceed ANSI standards
Product Highlights
This finished bore sprocket ensures reliable performance and extended life due to its precise machining.
Product Information
Standard Information
-
Brand: Martin
-
Country Of Origin: United States
-
Min Order Qty: 1
Technical Specifications
-
Bore Diameter: 1.4375 inches
-
Number Of Teeth: 16
-
Pitch Diameter: 3.8444 inches
-
Outside Diameter: 4.2210 inches
-
Hub Diameter: 3-1/16 inches
-
Tooth Width: 0.4590 inches
-
Set Screw Location: 2SS, KEYWAY & 90 degrees
-
Storage Dimension Length: 4.3125 inches
-
Storage Dimension Width: 4.3125 inches
-
Storage Dimension Height: 1.3125 inches
