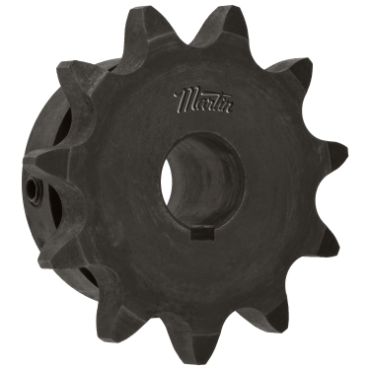

Martin 60BS15HT11/4 SABER Finished Bore Sprocket - Bored to Size, 1.2500 in Bore, 15 Teeth, Steel Material

Product Description

The Martin 60BS15HT11/4 is a SABER finished bore sprocket designed for mechanical power transmission. This specific model features a bore size of one point two five inches and includes fifteen teeth. This sprocket is made of high-quality steel and meets ANSI standards, ensuring reliability in various applications.

• Features a bored-to-size design for easy installation and compatibility.
• Includes hardened teeth for enhanced performance and durability.
• Equipped with keyways and setscrews for secure attachment.

Product Highlights

This finished bore sprocket is ready for shaft installation and comes with keyways and setscrews included. Its design minimizes runout and ensures a precise fit.

Product Information

Standard Information

• Brand: Martin
• Country of Origin: United States

Technical Specifications

• Pitch Type: Single
• Tooth Width: 0.4590 inches
• Hub Diameter: 2-7/8 inches
• Bore Diameter: 1.2500 inches
• Hardened Teeth: Yes
• Number of Hubs: 1
• Pitch Diameter: 3.6073 inches
• Set Screw Size: 0.313-18 X 0.313 inches
• Number of Teeth: 15
• Caliper Diameter: 3.1185 inches
• Outside Diameter: 3.9780 inches
• Set Screw Location: 2 setscrews, keyway at 90 degrees
• Length Through Bore: 1.2500 inches
• Chain Number & Pitch: 60 / 3/4 inch
• Hub Outside Diameter: 2.6250 inches
• Number of Set Screws: 2
• Maximum Bore Diameter: 1.875 inches
• Stocked Finished Bore: 1 1/4 inches
• Manufacturer UPC Number: 697950162713
• Storage Dimensions: Width 4.3125 inches, Height 1.3125 inches, Length 4.3125 inches
