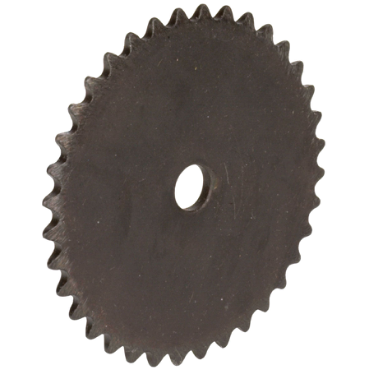

Martin 60A76 A-Plate Sprocket - Bored to Size - 60 / 3/4 in - A Hub - 76 Teeth - 1.2500 in Stock Bore

Product Description

The Martin 60A76 A-Plate Sprocket is designed for mechanical power transmission. This product features a bored-to-size hub and has seventy-six teeth, making it suitable for various applications. The sprocket is manufactured from steel to ensure durability. The sprocket is ideal for use in chain and sprocket systems.

• A Plates are flat sprockets without hub extensions.
• Can be customized with bolt holes or special hubs.
• Tolerances meet or exceed ANSI standards.

Product Highlights

This sprocket is essential for systems where precise motion transfer is required. Its design allows for adaptation to specific needs, enhancing functionality.

Product Information

Standard Information

• Brand: Martin
• Country Of Origin: United States

Technical Specifications

• MPN: 60A76
• Hub Type: A
• Tooth Width: 0.459 in
• Bore Diameter: 1.2500 in
• Number Of Teeth: 76
• Pitch Diameter: 18.1488 in
• Outside Diameter: 18.583 in
• Chain Number & Pitch: 60 / 3/4 in
• Surface Treatment: Protective Coating
• Standards Met: ANSI
