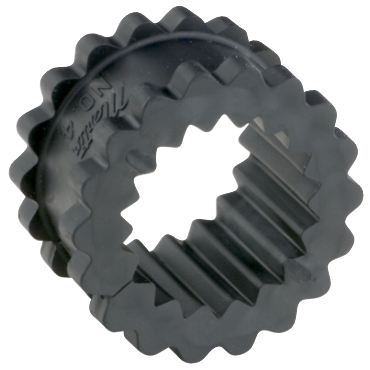

Martin 5JEMS QUADRA-FLEX Coupling Sleeve

Product Description

The Martin 5JEMS is a QUADRA-FLEX Coupling Sleeve designed for efficient power transmission in various applications. This coupling sleeve features two flanges with internal teeth that securely hold an elastomeric flexible sleeve. Maintenance is minimal, offering a no-lubrication solution ideal for a range of industrial settings.

• Two flanges with internal teeth
• Maintenance free and easy to install
• Dampens vibrations and controls shock

Product Highlights

This coupling sleeve reduces the risk of damage due to shock loads and vibrations, making it effective in various machinery configurations.

Product Information

Standard Information

• Brand: Martin
• Part Number: 100814304

Technical Specifications

• Torsional Stiffness: 916 Inch Pounds/Radian
• Insert Style: One Piece Split
• Sleeve Type: JEMS
• Temperature Range (Min): -50 °F
• Temperature Range (Max): 275 °F
• Coupling Size: 5
• Outside Diameter: 2 15/16 in
• HP @ RPM: 6.7 hp @ 1800 rpm
• Torque Rating (Max): 240.0 in lb
• Material: TPR
• Color: Black
• RPM (Max): 7,600 rpm
• Weight: 0.2 lb
• EAN or UPC: 697950276410
