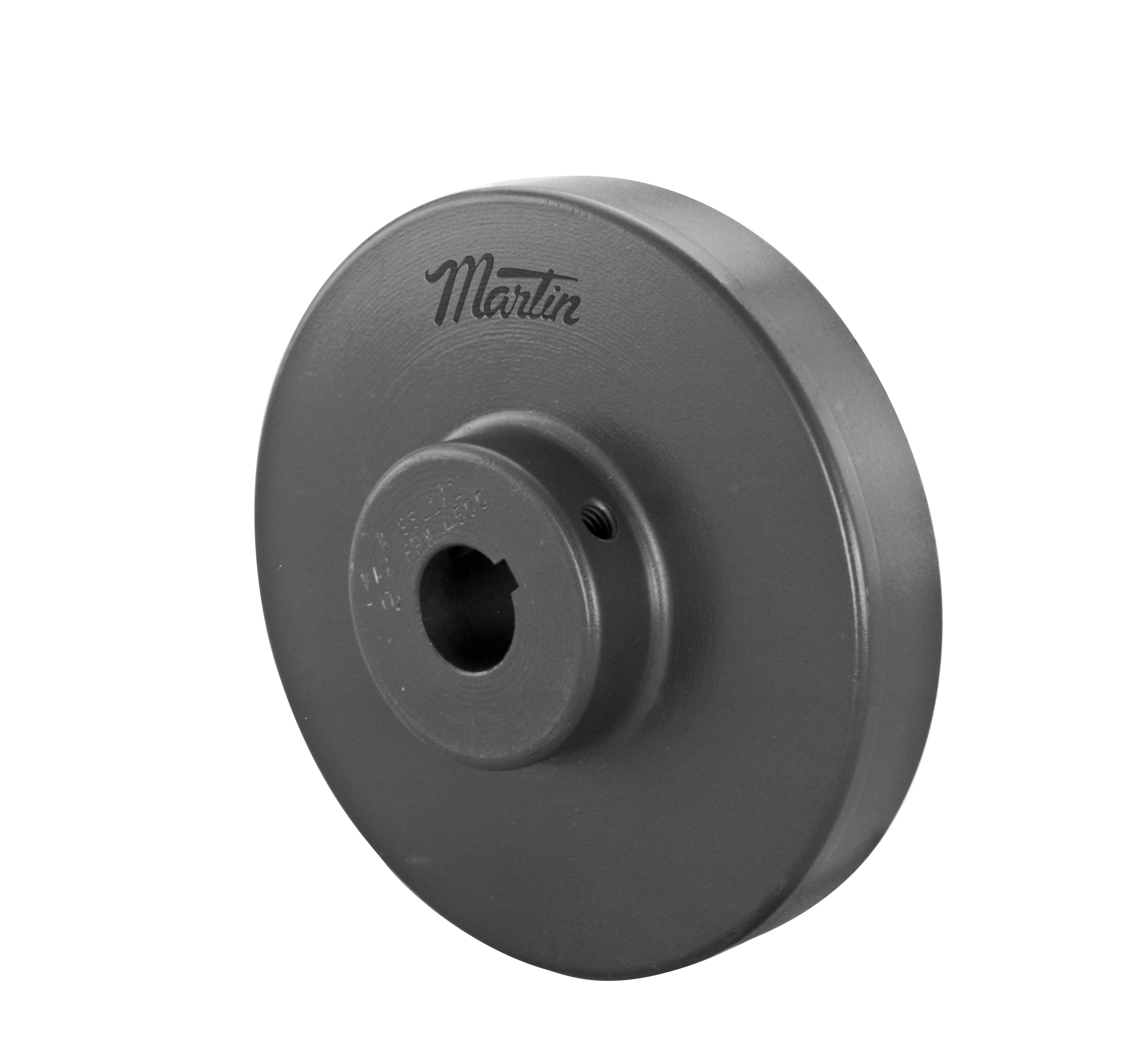

Martin 5J 7/8 MSG Quadra-Flex Coupling Flange 05

Product Description

The Martin 5J7/8 Quadra-Flex Coupling Flange is designed for reliable performance in mechanical applications. It features a bored-to-size design and is crafted from steel for durability. This coupling flange accommodates a seven-eighths inch bore diameter and has a hub diameter of one and seven-eighths inches, making it suitable for many industrial needs.

• No lubrication needed
• Easy to install
• Strong construction for maximum speed of 7600 rpm

Product Highlights

The Martin 5J7/8 coupling flange offers torsional flexibility and can withstand misalignment, shock, and vibration.

Product Information

Standard Information

• Brand: Martin Sprocket & Gear
• Type: Bored-to-Size Type J

Technical Specifications

• Bore Diameter: 7/8 in
• Coupling Size: 05
• Hub Diameter: 1-7/8 in
• Hub Length: 15/32 in
• Keyway Size: 3/16 x 3/32 in
• Length Through Bore: 2-7/8 in
• Maximum Speed: 7600 rpm
• Screw Size: 1/4-20 x 1/4 in
• Material: Steel
