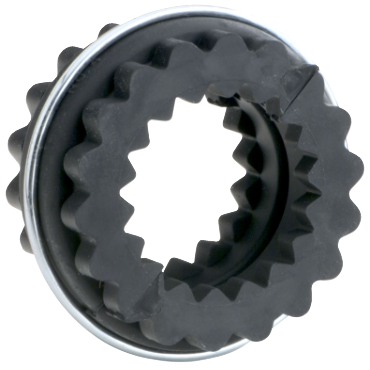

Martin 5EM QUADRA-FLEX Coupling Sleeve 6.7 hp @ 1800 rpm 5EM

Product Description

The Martin 5EM is a QUADRA-FLEX Coupling Sleeve designed for reliable performance in various applications. This coupling sleeve features two flanges with internal teeth that easily connect to an elastomeric flexible sleeve.

• Size five, Type EM Coupling Sleeve
• No lubrication required
• Maintenance-free installation

Product Highlights

The QUADRA-FLEX Coupling Sleeve dampens vibrations and controls shock while ensuring torsional softness and double engagement.

Product Information

Standard Information

• Brand: Martin
• Part Number: 100814289

Technical Specifications

• Coupling Size: 5
• Temperature Range (Max): 275 °F
• Material: TPR
• Sleeve Type: EM
• Torque Rating (Max): 240.0 in lb
• Temperature Range (Min): -50 °F
• HP @ RPM: 6.7 hp @ 1800 rpm
• Color: Black
• Insert Style: Two Piece
• Outside Diameter: 2 15/16 in
• Torsional Stiffness: 916 inch pounds/radian
• RPM (Max): 7,600 rpm
• Weight: 0.25 LB
• EAN or UPC: 697950276397
