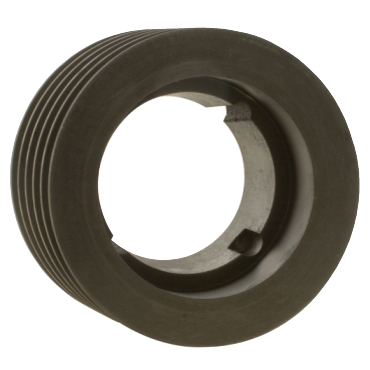

Martin 5B52TB A-B Series Combination Groove Conventional Taper Bushed Sheave

Product Description

The Martin 5B52TB is an A-B Series Combination Groove Conventional Taper Bushed Sheave designed to meet industrial demands for various applications.

• Includes five grooves for effective belt engagement.
• Standard taper lock bushing for easy installation and maintenance.
• Compatible with other manufacturers' sheaves and bushings.

Product Highlights

This sheave operates at rim speeds up to 6,500 feet per minute and accommodates a range of belt sizes.

Product Information

Standard Information

• Brand: Martin
• MPN: 5B52TB

Technical Specifications

• No. of Grooves: 5
• Overall Length: 4 inches
• Outside Diameter: 5.55 inches
• Bore Range [Min]: 0.5 inches
• Bore Range [Max]: 1.625 inches
• Pitch Diameter: 5.2 inches
• Bushing Type: Taperlock
• Bushing Series: 1615
