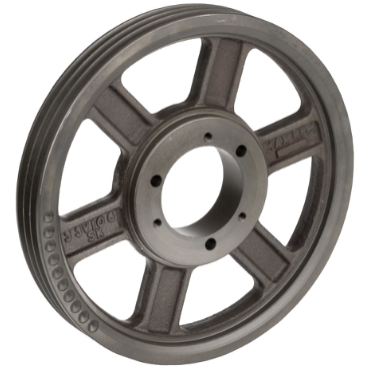

Martin 55V925E Bushing Bore V-Belt Pulley - 5V Belt Section 9 Groove 12.4 in Pitch Dia.

Product Description

The Martin 55V925E is a bushing bore V-belt pulley designed for the 5V belt section. This model features nine grooves and a pitch diameter of twelve point four inches. The outer diameter measures twelve point five inches, making it suitable for various mechanical power transmission applications. Its cast iron material ensures durability and strength in demanding environments.

• Interchangeable with other manufacturer's QD bushings.
• Meets industry standard tolerances.
• Statically balanced for high performance.

Product Highlights

This V-belt pulley is characterized by precise machining for quality assurance. It is statically balanced and marked with the maximum rim speed for safe operation.

Product Information

Standard Information

• Brand: Martin
• Country of Origin: United States

Technical Specifications

• Material: Cast Iron
• Face Width: Three point seven five inches
• Overall Width: Six point five inches
• Bushing Series: F
• Belt Section Size: 5V
• Number of Grooves: Nine
• Length Through Bore: Four inches
• Bushing Bore Range: Zero point eight seven five to three point three one two five inches
• Pitch Diameter: Twelve point four inches
• Outside Diameter: Twelve point five inches
• Mounting Type: Reversible
• Pulley Construction: Solid
