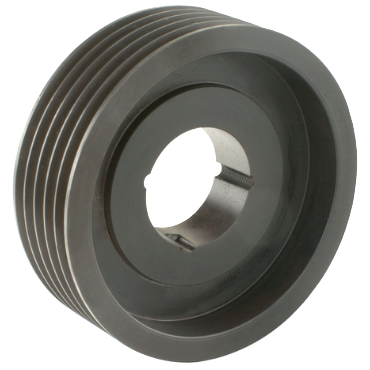

Martin 55V1320TB 5V Series Hi-Cap Wedge Taper Bushed Sheave

Product Description

Martin 55V1320TB is a 5V Series Hi-Cap Wedge Taper Bushed Sheave. This product is designed to meet industrial demands while ensuring compatibility with various systems.

• Compatible with other manufacturers' sheaves and bushings.
• Designed for rim speeds up to 6,500 feet per minute.
• Manufactured with cast iron for durability.

Product Highlights

This sheave supports a reliable design that allows for smooth operation in demanding environments, making it suitable for many applications.

Product Information

Standard Information

• Brand: Martin
• MPN: 55V1320TB

Technical Specifications

• Material: Cast Iron
• Bushing Series: 3535
• Pitch Diameter: 13.1 inches
• Belt Match: 1, 5
• Type: Web
• Bushing Part Number: 3535
• Bore Range [Min]: 1.5 inches
• Bore Range [Max]: 3.25 inches
• Outside Diameter: 13.20 inches
• Length Through Bore: 3.5 inches
• Bore Type: Bushed
• Bushing Type: Taperlock
• No. of Grooves: 5
• Overall Length: 3.75 inches
• Weight: 57.0 LB
• EAN or UPC: 697950156958
