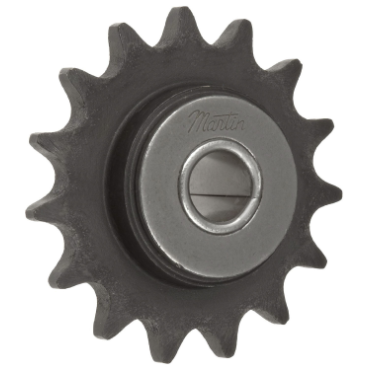

Martin 51E15 Bronze Bush/Steel Journal Idler Sprocket

Product Description

The Martin 51E15 is a bronze bush and steel journal idler sprocket designed for industrial applications. This sprocket is compatible with 51 chain systems, featuring 15 teeth and a bearing bore of half an inch. It is built to help change the direction of chain motion or adjust chain tension for optimal performance.

• 15 Teeth
• 0.5 inch bearing bore
• 3.22 inch outer diameter

Product Highlights

This sprocket is ideal for enhancing chain efficiency while ensuring reduced wear and friction.

Product Information

Standard Information

• Brand: Martin
• Part Number: 100796934

Technical Specifications

• Series: E
• Weight: 0.7 LB
• Hub Diameter: 1.473 inches
• Material: Steel
• Bore Size: 0.5 inches
• Bore Type: Bearing
• Chain Number: 51
• Number of Teeth: 15
• Outside Diameter: 3.22 inches
• Pitch Diameter: 2.975 inches
• Chain Pitch: 0.625 inches
• Sprocket Type: C
• Length Through Bore: 0.75 inches
• No. of Strands Across: 1
• Single Strand Tooth Thickness: 0.284 inches
• Caliper Diameter: 2.841 inches
