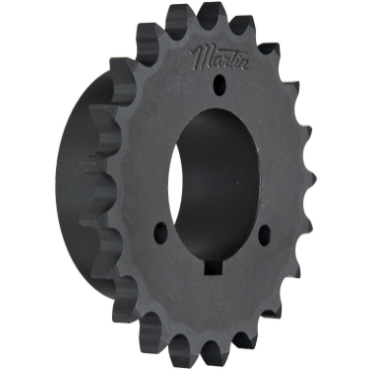

Martin 50P20H Bushing Bore Roller Chain Sprocket - Split Taper, 50 / 5/8 in, 20 Teeth, P1 Bushing, Steel Material

Product Description

The Martin 50P20H is a bushing bore roller chain sprocket made from steel. It features a split taper design that accommodates a range of bore sizes. This sprocket is suitable for use in mechanical power transmission applications.

• High carbon steel construction for durability.
• Meets ANSI standards for tolerance.
• Compatible with other manufacturers' split-taper bushings.

Product Highlights

This sprocket ensures precise alignment and minimizes run out due to its concentric bores.

Product Information

Standard Information

• Brand: Martin
• Country Of Origin: United States

Technical Specifications

• Weight: 1.95 lbs
• Material: Steel
• Bore Type: Bushed
• Pitch Type: Single
• Bushing Size: P1
• Bushing Type: Split Taper Bushing
• Chain Number: 50
• Hub Diameter: 3 in
• Number Of Teeth: 20
• Overall Width: 2-3/16 in
• Outside Diameter: 4.3210 in
• Length Through Bore: 1.3125 in
• Pitch Diameter: 3.9953 in
• Storage Dimension Width: 4.3125 in
• Storage Dimension Height: 1.3125 in
• Storage Dimension Length: 4.3125 in
• Surface Treatment: Protective Coating
