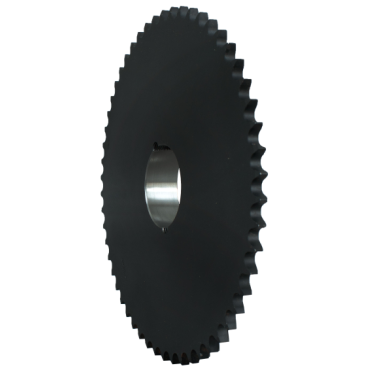

Martin 50BTB60 Bushing Bore Roller Chain Sprocket - Taper Locking - 50 / 5/8 in - 60 Teeth - 2012 Bushing

Product Description

The Martin 50BTB60 is a bushing bore roller chain sprocket designed for efficient power transmission. This sprocket features a taper locking system that securely tightens onto the shaft, ensuring stable operation. It has sixty teeth and is compatible with standard roller chains with a pitch of five-eighths inch.

• Manufactured from high carbon steel for durability.
• Meets ANSI standards for precision and quality.
• Non-hardened teeth for application flexibility.

Product Highlights

This bushing bore roller chain sprocket offers precise machining that enhances longevity and performance, making it suitable for various mechanical applications.

Product Information

Standard Information

• Brand: Martin
• Country Of Origin: United States

Technical Specifications

• Pitch Type: Single
• Number Of Teeth: 60
• Hub Diameter: 3-9/16 inches
• Overall Width: 1-1/4 inches
• Tooth Width: 0.343 inches
• Outside Diameter: 12.3010 inches
• Length Through Bore: 1.2500 inches
• Bushing Bore Range: 1/2 to 2 inches
