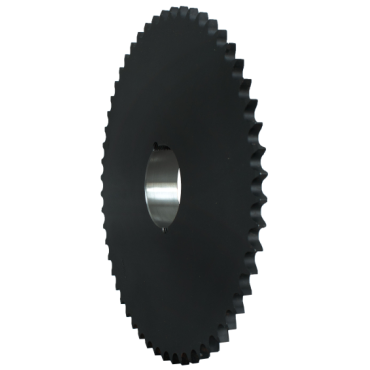

Martin 50BTB48 Bushing Bore Roller Chain Sprocket - Taper Locking, 50 / 5/8 in, 48 Teeth, 2012 Bushing

Product Description

The Martin 50BTB48 is a bushing bore roller chain sprocket designed for efficient power transmission. This taper locking sprocket features forty-eight teeth and is compatible with a chain size of fifty with a pitch of five-eighths of an inch. Made from steel, this sprocket is suitable for various mechanical applications.

• High carbon steel construction
• Compatible with ANSI standards
• Taper locking design for secure fit

Product Highlights

This sprocket ensures tight grip and longevity, making it a reliable choice for mechanical systems that require precision and durability.

Product Information

Standard Information

• Brand: Martin
• Country Of Origin: United States

Technical Specifications

• MPN: 50BTB48
• Tooth Width: 0.343 inches
• Hub Diameter: 3-9/16 inches
• Pitch Diameter: 9.5561 inches
• Outside Diameter: 9.9110 inches
• Chain Number & Pitch: 50 / 5/8 inches
• Bushing Bore Range: 1/2 to 2 inches
• Surface Treatment: Protective Coating
