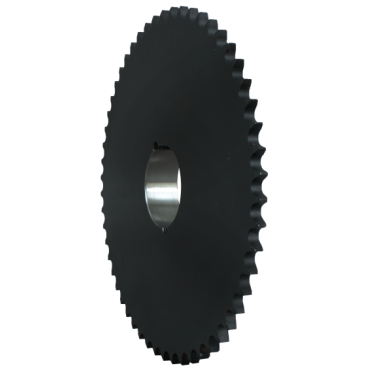

Martin 50BTB45 Bushing Bore Roller Chain Sprocket - Taper Locking, 50 / 5/8 in, 45 Teeth, 2012 Bushing, Steel Material

Product Description

The Martin 50BTB45 Bushing Bore Roller Chain Sprocket is designed for reliability in mechanical power transmission. This sprocket features a taper locking mechanism for a secure fit and is made for standard roller chains with a pitch of five eighths in. It is built with high carbon steel to ensure strength and durability.

• Designed for 50 / 5/8 inch roller chain
• Includes 45 teeth for effective power transfer
• Taper locking bushing for easy installation

Product Highlights

This sprocket provides consistent performance and longevity, suitable for various industrial applications.

Product Information

Standard Information

• Brand: Martin
• Country Of Origin: United States

Technical Specifications

• MPN: 50BTB45
• Hub Diameter: 3-9/16 inches
• Tooth Width: 0.343 inches
• Overall Width: 1-1/4 inches
• Pitch Diameter: 8.9597 inches
• Caliper Diameter: 8.5542 inches
• Outside Diameter: 9.3130 inches
• Bushing Bore Range: 1/2 to 2 inches
