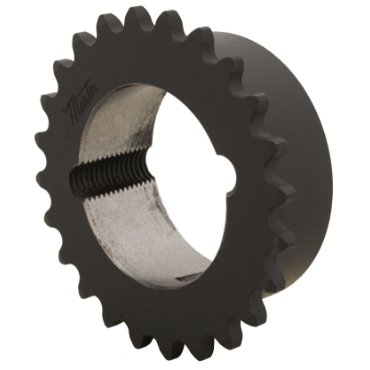

Martin 50BTB36 TL Bushed Roller Chain Sprocket - Taper Locking, 50 / 5/8 in, 36 Teeth, 2012 Bushing

Product Description

The Martin 50BTB36 is a TL Bushed Roller Chain Sprocket designed for use in mechanical power transmission systems. This sprocket features taper locking for secure attachment. With thirty-six teeth, it is built from steel material and designed to fit a chain size of fifty with a pitch of five-eighths of an inch. The 2012 bushing provides a reliable solution for various applications.

• Flush fit design minimizes space requirements on the shaft
• Hardened teeth for enhanced durability
• Can accommodate a bushing bore range from one-half to two inches

Product Highlights

This sprocket is effective in transferring power with less space usage, making it an essential component for many industrial applications.

Product Information

Standard Information

• Brand: Martin
• Country Of Origin: United States

Technical Specifications

• MPN: 50BTB36
• Number Of Teeth: 36
• Pitch Diameter: 7.171 in
• Outside Diameter: 7.5190 in
• Hub Diameter: 3-9/16 in
• Tooth Width: 0.343 in
• Overall Width: 1-1/4 in
• Length Through Bore: 1.2500 in
