Martin 50BTB17H MSG Saber Tooth Roller Chain Sprocket Taper Bushed Type B #50 Chain

Product Description

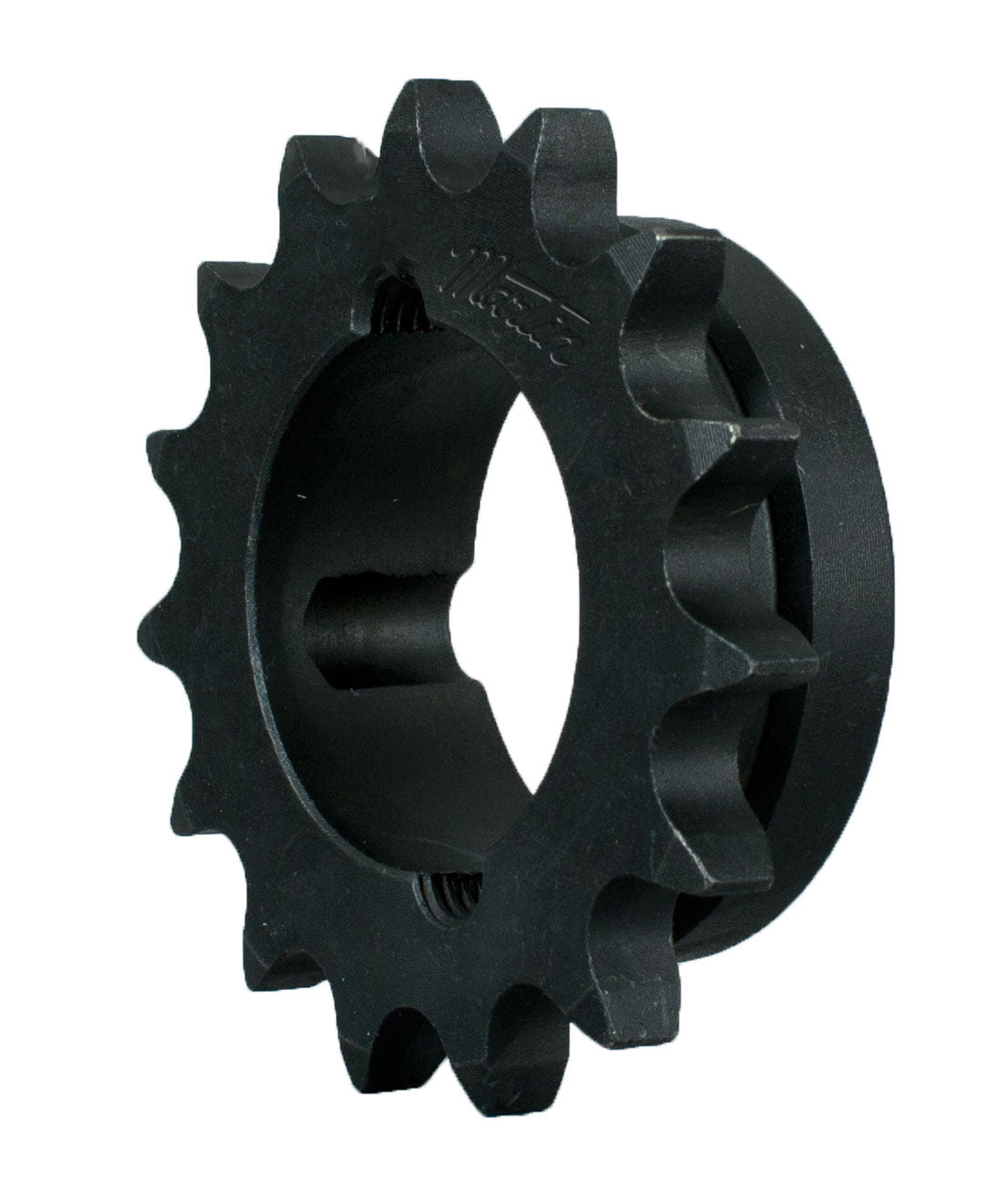

The Martin 50BTB17H is a taper bushed single pitch roller chain sprocket. It is designed for use with a #50 chain. The product features hardened teeth for durability and longevity. This sprocket has an outside diameter of three point seven one eight inches and has seventeen teeth, making it suitable for various applications in power transmission.

• Hardened steel construction for extended wear.
• Taper bushing design for secure fit and easy installation.
• Compatible with #50 roller chains.

Product Highlights

Ideal for industrial applications requiring reliable power transmission.

Product Information

Standard Information

• Manufacturer: Martin Sprocket & Gear
• Part Number: 50BTB17H

Technical Specifications

• Bushing Type: 1610 Taper Lock
• Chain Size: #50
• Number of Teeth: 17
• Pitch Diameter: 3.401 inches
• Hub Diameter: 2.781 inches
• Outside Diameter: 3.718 inches
• Length Through Bore: 1 inch
• Material: Steel
• Pitch: 5/8 inches
• Country of Origin: US
