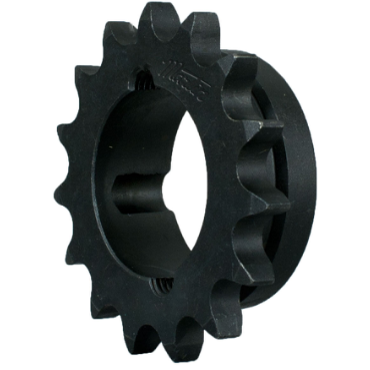

Martin 50BTB12H Bushing Bore Roller Chain Sprocket - Taper Locking, 50 / 5/8 in, 12 Teeth, 1008 Bushing, Steel Material

Product Description

The Martin 50BTB12H is a bushing bore roller chain sprocket designed for efficient power transmission. This sprocket features a taper locking system that enhances grip and stability during operation. It is suitable for use in various mechanical applications where reliable performance is essential.

• Constructed from high carbon steel for enhanced durability.
• Meets ANSI standards for tolerance and precision.
• Compatible with chains of 50 / 5/8 inch pitch.

Product Highlights

This sprocket offers a tapered bushing for a secure connection to the shaft, minimizing slippage.

Product Information

Standard Information

• Brand: Martin
• Part Number: 50BTB12H

Technical Specifications

• Tooth Count: 12
• Hub Diameter: 1-15/16 inches
• Pitch Type: Single
• Overall Width: 7/8 inches
• Number of Hubs: 1
• Chain Roller Width: 0.3750 inches
• Chain Roller Diameter: 0.4000 inches
• Outside Diameter: 2.7080 inches
• Length Through Bore: 0.8750 inches
• Surface Treatment: Protective Coating
