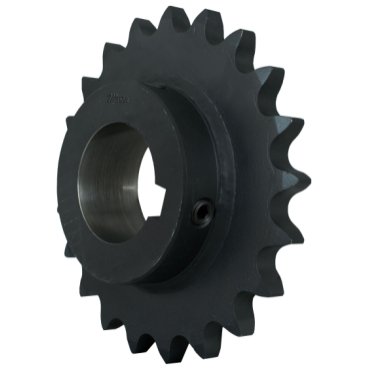

Martin 50BS4511/2 Bored to Size Sprocket - 50 / 5/8 in

Product Description

Martin 50BS4511/2 is a bored to size sprocket designed for standard roller chains with a chain number of 50 and a pitch of five eighths inches. This sprocket features a bore diameter of one point five inches and includes forty-five teeth. It is made from high carbon steel, ensuring durability and high performance.

• Shaft ready with keyways and set screws
• Manufactured to meet ANSI standards
• Concentric bores to pitch line minimizing run out

Product Highlights

This sprocket is suitable for various mechanical power transmission applications. Its design promotes effective and reliable operation.

Product Information

Standard Information

• Brand: Martin
• Country of Origin: United States

Technical Specifications

• Part Number: 00170777
• Hub Diameter: 3.75 inches
• Tooth Width: 0.343 inches
• Bore Diameter: 1.5000 inches
• Number of Teeth: 45
• Pitch Diameter: 8.9597 inches
• Outside Diameter: 9.3130 inches
• Length Through Bore: 1.2500 inches
• Storage Dimension Width: 9.3130 inches
• Storage Dimension Height: 1.25 inches
• Storage Dimension Length: 9.3130 inches
