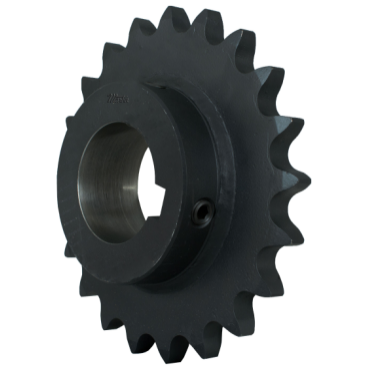

Martin 50BS23HT1 Saber Finished Bore Sprocket - Bored to Size, 1.0000 in Bore, 23 Teeth, Steel Material

Product Description

The Martin 50BS23HT1 Saber Finished Bore Sprocket is designed for mechanical power transmission applications. This sprocket features a one inch bore and has a total of twenty-three teeth, making it suitable for various roller chain configurations.

• Finished bore for easy installation
• Manufactured from high carbon steel
• Meets or exceeds ANSI standards

Product Highlights

This sprocket is ideal for heavy-duty use and ensures durability through precise machining. The hardened teeth and effective heat treatment significantly increase the lifespan of the component.

Product Information

Standard Information

• Brand: Martin
• Country of Origin: United States

Technical Specifications

• Bore Diameter: 1.0000 in
• Number of Teeth: 23
• Hub Diameter: 3 in
• Outside Diameter: 4.9220 in
• Pitch Diameter: 4.59 in
• Set Screw Size: .313-18 X .313 in
• Length Through Bore: 1.0000 in
• Storage Dimension Width: 5.2500 in
• Storage Dimension Height: 1.1250 in
• Storage Dimension Length: 5.2500 in
• Maximum Bore Diameter: 2 in
• Number of Set Screws: 2
