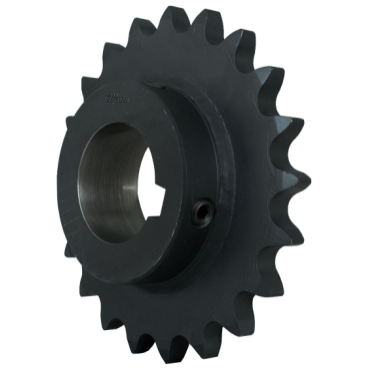

Martin 50BS22HT1 SABER Finished Bore Sprocket - Bored to Size, 1.0000 in Bore, 22 Teeth, Steel Material

Product Description

The Martin 50BS22HT1 Sabertooth finished bore sprocket features a one inch bore and twenty-two teeth. It is manufactured from high carbon steel, making it durable and reliable for various mechanical power transmission applications.

• Meets or exceeds ANSI standards for tolerance and performance.
• Complete with hardened teeth for extended lifespan.
• Includes keyways and setscrews for secure installation.

Product Highlights

This sprocket is bored to size and features a design that minimizes runout. It is suitable for chain number fifty and five-eighths inch pitch.

Product Information

Standard Information

• Brand: Martin
• Country Of Origin: United States

Technical Specifications

• Bore Diameter: 1.0000 inches
• Number Of Teeth: 22
• Hub Diameter: 3 inches
• Pitch Diameter: 4.3917 inches
• Outside Diameter: 4.7220 inches
• Set Screw Size: .313-18 X .313 inches
• Storage Dimension Width: 4.8125 inches
• Storage Dimension Height: 1.0625 inches
• Storage Dimension Length: 4.8125 inches
