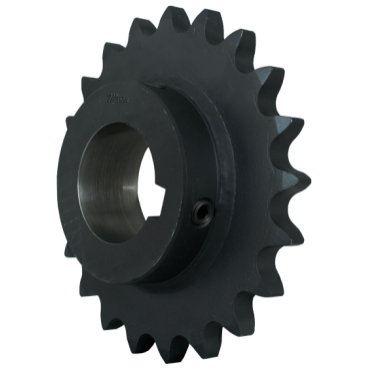

Martin 50BS2213/16 Bored to Size Sprocket - 50 / 5/8 in

Product Description

The Martin 50BS2213/16 is a bored to size sprocket designed for effective mechanical power transmission. This part features a bore size of one point one eight seven five inches and has twenty-two teeth to accommodate a roller chain with a pitch of five eighths inch.

• Manufactured from high carbon steel
• Includes keyways and setscrews
• Meets ANSI standard tolerances

Product Highlights

Ideal for applications requiring durable and precise sprocket performance.

Product Information

Standard Information

• Brand: Martin
• Country Of Origin: United States

Technical Specifications

• Pitch Type: Single
• Tooth Width: 0.343 in
• Hub Diameter: 3 in
• Bore Diameter: 1.1875 in
• Hardened Teeth: Non-Hardened Teeth
• Number Of Hubs: 1
• Pitch Diameter: 4.3917 in
• Number Of Teeth: 22
• Caliper Diameter: 3.9917 in
• Outside Diameter: 4.7220 in
• Surface Treatment: Protective Coating
• Length Through Bore: 1.0000 in
• Chain Number & Pitch: 50 / 5/8 in
• Chain / Sprocket Type: Standard Roller Chain
• Manufacturer UPC Number: 697950011905
• Storage Dimension Width: 4.8125 in
• Storage Dimension Height: 1.0625 in
• Storage Dimension Length: 4.8125 in
