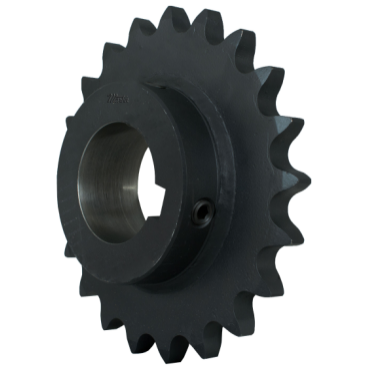

Martin 50BS2013/16 Bored to Size Sprocket - 5/8 in - 20 Teeth

Product Description

The Martin 50BS2013/16 is a bored to size sprocket designed for efficient power transmission. This sprocket is made of high carbon steel and features a bore diameter of 1.1875 inches. It is equipped with 20 teeth and meets ANSI specifications for tolerances, ensuring a reliable performance in various applications.

• Shaft-ready design with keyways and setscrews included
• Manufactured with precise machining for consistent quality
• Bores are designed to be concentric to pitch line

Product Highlights

This sprocket allows for smooth operation and minimal run-out, making it suitable for standard roller chain systems.

Product Information

Standard Information

• Brand: Martin
• MPN: 50BS2013/16

Technical Specifications

• Pitch Type: Single
• Tooth Width: 0.343 inches
• Hub Diameter: 3 inches
• Bore Diameter: 1.1875 inches
• Number Of Hubs: 1
• Pitch Diameter: 3.9953 inches
• Number Of Teeth: 20
• Caliper Diameter: 3.5953 inches
• Outside Diameter: 4.3210 inches
• Storage Dimension Width: 4.6250 inches
• Storage Dimension Height: 1.0625 inches
• Storage Dimension Length: 4.6250 inches
