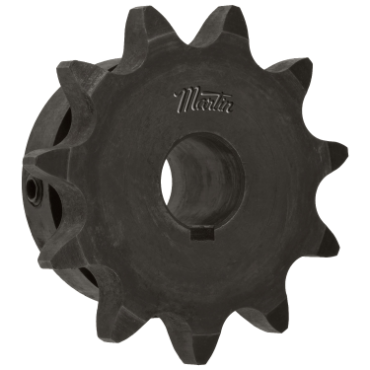

Martin 50BS15HT13/16 Saber Finished Bore Sprocket - Bored to Size, 1.1875 in Bore, 15 Teeth

Product Description

The Martin 50BS15HT13/16 Saber Finished Bore Sprocket features a bore diameter of one point one eight seven five inches. This sprocket is designed for mechanical power transmission applications where reliability is crucial. It has fifteen teeth and is made of high carbon steel for robust performance.

• Finished bore sprocket with hardened teeth.
• Compatible with chain number fifty.
• Includes two set screws and keyway.

Product Highlights

The design focuses on precise machining and adherence to ANSI standards. Its tooth layout ensures minimal run-out, enhancing its durability and functionality in various settings.

Product Information

Standard Information

• Brand: Martin
• Country Of Origin: United States

Technical Specifications

• Bore Diameter: 1.1875 in
• Number Of Teeth: 15
• Pitch Diameter: 3.0061 in
• Hub Diameter: 2-3/8 in
• Outside Diameter: 3.3150 in
• Set Screw Size: .313-18 X .313 in
• Tooth Width: 0.3430 in
• Maximum Bore Diameter: 1.625 in
