Martin 50BS145/8 Bored to Size Sprocket - 50 / 5/8 in

Product Description

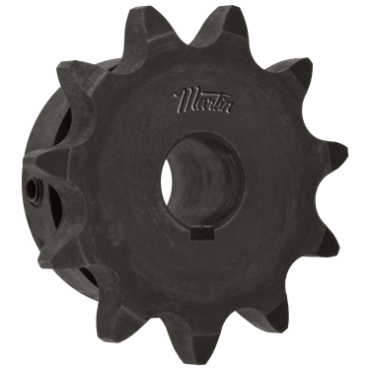

The Martin 50BS145/8 is a bored to size sprocket designed for mechanical power transmission. Made from high carbon steel, this sprocket features a bore diameter of zero point six two five inches and has fourteen teeth. This product is ideal for applications requiring precise fitting and reliable operation.

• Finished bore for easy shaft installation.
• Includes keyways and setscrews for secure attachment.
• Manufactured to meet ANSI standards.

Product Highlights

This sprocket is suitable for standard roller chain systems, making it a versatile choice for various mechanical applications.

Product Information

Standard Information

• Brand: Martin
• Min Order Qty: 1

Technical Specifications

• Bore Diameter: 0.6250 in
• Number of Teeth: 14
• Pitch Diameter: 2.8087 in
• Outside Diameter: 3.1130 in
• Length Through Bore: 1.0000 in
• Hub Diameter: 2-1/8 in
• Tooth Width: 0.343 in
• Storage Dimension Width: 4.3125 in
• Storage Dimension Height: 1.0625 in
• Storage Dimension Length: 4.3125 in
• Chain Number & Pitch: 50 / 5/8 in
• Chain / Sprocket Type: Standard Roller Chain
• Surface Treatment: Protective Coating
