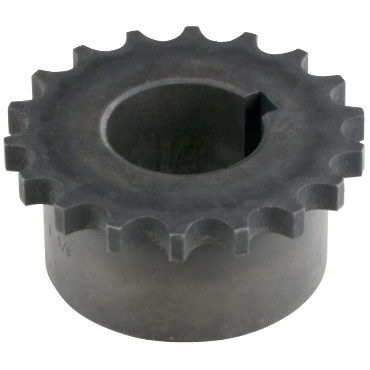

Martin 50167/8 Finished Bore Roller Chain Coupling Hub

Product Description

The Martin Finished Bore Roller Chain Coupling Hub, MPN 50167/8, is designed for heavy-duty applications. This coupling hub supports torque capacities beyond typical levels for its shafting bore range. It's suitable for connecting two rotating shafts efficiently.

• Torque capacity exceeds normal levels.
• Bored to size for precision fit.
• Durable steel construction.

Product Highlights

The product is ideal for various industrial applications where reliable torque transfer is required.

Product Information

Standard Information

• Brand: Martin
• Part Number: 100813646

Technical Specifications

• Coupling Spacing: 0.375 in
• Has Finished Bore: Yes
• Chain No.: 50
• Bore Type: Bored to Size
• No. of Teeth: 16
• Hub Diameter: 2 1/2 in
• Bore Size: 0.875 in - 7/8 in
• Outside Diameter: 3 25/32 in
• Bore Range: 0.875 in
• Bushing Series: N/A
• Finished Bore: 7/8 in
• Bore Range [Min]: 7/8 in
• Material: Steel
• Overall Length of Complete Coupling: 3 1/4 in
• Length Through Bore: 1 7/16 in
• Weight: 1.69 LB
• EAN or UPC: 697950046976
• NSN Number: 3010-01-283-3915
