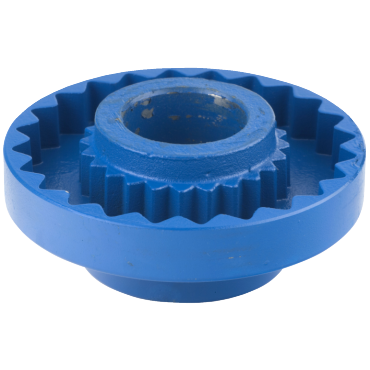

The Martin 4JSC35 is a QUADRA-FLEX Type SC Spacer Coupling Flange. This coupling flange is designed for effective connection in mechanical power transmission applications.
- Optimized for a hub size of 4H.
- Constructed from sintered steel for durability.
- Supports a maximum RPM of 7600.
This spacer coupling flange enhances performance while providing flexibility and reliability. It is useful in various industrial applications where alignment and the transfer of torque are essential.
-
Outside Diameter: 2.46 in
-
Overall Width: 7/8 in
-
For Hub: 4H
-
RPM [Max]: 7600 rpm
-
Bore Range [Max]: 1.125 in
-
Material: Sintered Steel
-
Hub Diameter: 2 in
-
Coupling Size: 4JSC
-
Hub Length: 1 5/8 in
-
Weight: 1.3 LB
-
EAN or UPC: 697950276380
