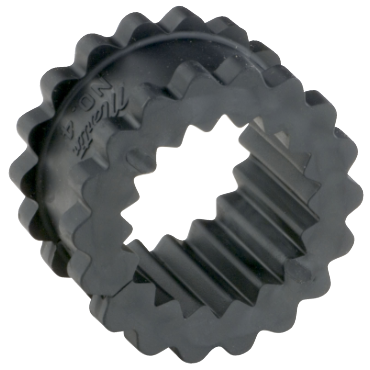

Martin 4JEMS QUADRA-FLEX Coupling Sleeve Power (Size 4) Replacement MPN

Product Description

The Martin 4JEMS QUADRA-FLEX Coupling Sleeve is designed for effective power transmission in various applications. This coupling sleeve features two flanges with internal teeth that engage an elastomeric flexible sleeve. It allows for easy installation and requires no lubrication. The design dampens vibrations and controls shock. It is torsionally soft and provides double engagement for improved performance.

• Size 4 coupling sleeve
• Maximum RPM of seven thousand six hundred
• Temperature range from negative fifty to two hundred seventy-five degrees Fahrenheit

Product Highlights

This coupling sleeve is ideal for use in HVAC systems, pumps, and other mechanical applications requiring reliable torque transfer.

Product Information

Standard Information

• Brand: Martin
• Part Number: 100814287

Technical Specifications

• Torsional Stiffness: 7600 Inch Pounds/Radian
• Temperature Range [Max]: 275 °F
• Temperature Range [Min]: -50 °F
• Insert Style: One Piece Split
• RPM [Max]: 7600 rpm
• HP @ RPM: 3.3 hp @ 1800 rpm
• Sleeve Type: JEMS
• Outside Diameter: 2 5/16 in
• Coupling Size: 4
• Material: TPR
• Torque Rating [Max]: 120.0 in lb
• Weight: 0.1 LB
• EAN or UPC: 697950276281
