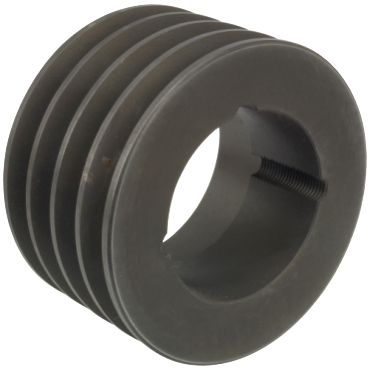

Martin 4B68TB A-B Series Combination Groove Conventional Taper Bushed Sheave

Product Description

The Martin 4B68TB is an A-B Series Combination Groove Conventional Taper Bushed Sheave designed for high-performance applications in various industries. This sheave is a robust option for different belt sizes including A and B belts.

• Outside diameter measures seven point fifteen inches.
• Compatible with taperlock bushings, offering a minimum bore range of zero point five inches and a maximum bore range of two point five inches.
• Interchangeable with other manufacturers' sheaves.

Product Highlights

Durable and reliable for use in demanding environments, the Martin sheave is statically balanced and rated for rim speeds of up to six thousand five hundred feet per minute.

Product Information

Standard Information

• Brand: Martin
• Part Number: 100786479
• Availability: Ready to Ship

Technical Specifications

• Outside Diameter: 7.15 inches
• Bore Range (Min): 0.5 inches
• Bore Range (Max): 2.5 inches
• No. of Grooves: 4
• Bushing Type: Taperlock
• Material: Cast Iron
• Weight: 15.0 LB
• Belt Size: A, B
