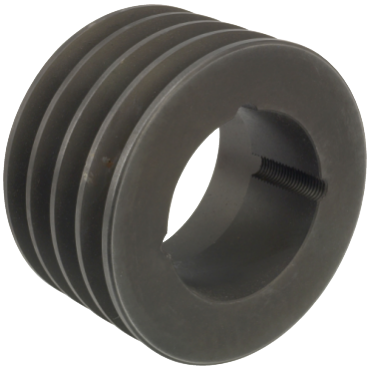

Martin 4B38TB A-B Series Combination Groove Conventional Taper Bushed Sheave

Product Description

The Martin 4B38TB is an A-B Series combination groove conventional taper bushed sheave. This product is designed for reliable performance in various industrial applications.

• Compatible with A and B belt sizes.
• Supports a minimum bore range of 0.5 inches and a maximum of 1.5 inches.
• Manufactured from steel, ensuring durability.

Product Highlights

This sheave is statically balanced and suitable for rim speeds of up to 6,500 feet per minute. It is interchangeable with sheaves and bushings from other trusted manufacturers.

Product Information

Standard Information

• Brand: Martin
• Part Number: 100786447

Technical Specifications

• Bushing Type: Taperlock
• Length Through Bore: 1 inch
• Bushing Series: 1610
• No. of Grooves: 4
• Material: Steel
• Bushing Mount: Standard
• Bore Type: Bushed
• Overall Length: 3.25 inches
• Outside Diameter: 4.15 inches
• Pitch Diameter: 3.8 inches
• Bore Range [Min]: 0.5 inches
• Bore Range [Max]: 1.5 inches
• Weight: 4.3 lbs
