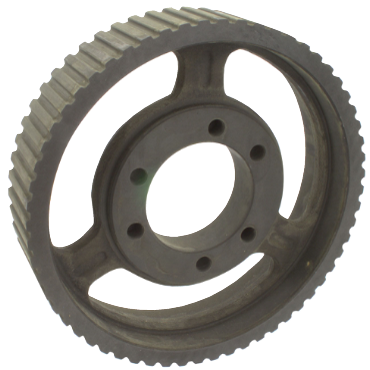

Martin 48H200SF Reborable Timing Pulley

Product Description

The Martin 48H200SF is a reborable timing pulley designed for synchronous drive applications. It features a belt pitch of 0.5 inches and a belt width of 2 inches. This pulley has 48 teeth and an outside diameter of 7.588 inches. It is compatible with the H belt size and utilizes an SF bushing series.

• Belt Pitch: 0.5 in
• Belt Width: 2 in
• No. of Teeth: 48

Product Highlights

This timing pulley is widely used in machines for constant speed applications. It ensures a nonslip operation with minimal backlash and requires no lubrication.

Product Information

Standard Information

• Brand: Martin
• MPN: 48H200SF

Technical Specifications

• Material: Cast Iron
• Bore Type: Bushed
• Hub Type: A
• Pitch Diameter: 7.639 in
• Length Through Bore: 2.344 in
• Outside Diameter: 7.588 in
• Bore Range [Min]: 0.5 in
• Bore Range [Max]: 2.9375 in
