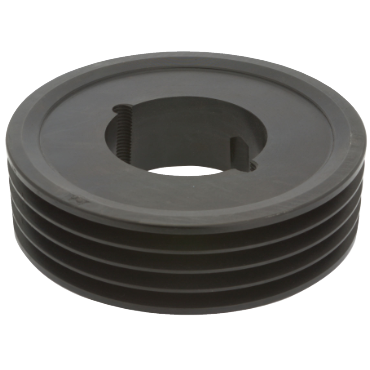

Martin 43V300TB 3V Series Hi-Cap Wedge Taper Bushed Sheave

Product Description

The Martin 43V300TB is a 3V Series Hi-Cap Wedge Taper Bushed Sheave designed for use in various mechanical systems. This sheave features a taper lock bushing type for secure mounting. It is suitable for applications requiring a reliable sheave solution.

• 3V belt size for compatibility with standard V-belts
• Four grooved design for efficient power transmission
• Cast iron construction for durability

Product Highlights

Designed for high-performance applications, this Martin sheave is statically balanced and can handle rim speeds of up to 6,500 feet per minute.

Product Information

Standard Information

• Brand: Martin
• Part Number: 100786316

Technical Specifications

• 3V Pitch Diameter: 2.95 inches
• Belt Size: 3V
• Bushing Series: 1210
• Belt Match: 1, 4
• Bushing Mount: Standard
• Bore Range [Max]: 1.25 inches
• Bore Range [Min]: 0.5 inches
• Material: Cast Iron
• No. of Grooves: 4
• Outside Diameter: 3.00 inches
• Weight: 2.1 pounds
