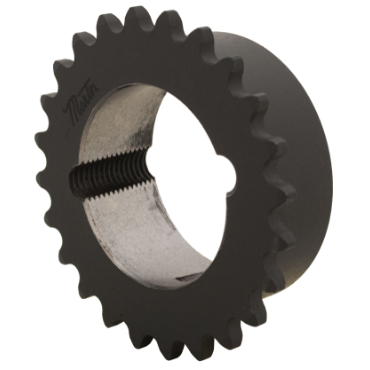

Martin 41BTB24 Bushing Bore Roller Chain Sprocket - Taper Locking, 41 / 1/2 in, 24 Teeth, 1610 Bushing

Product Description

The Martin 41BTB24 is a bushing bore roller chain sprocket with a taper locking system. It features a bore designed for 1/2 inch shafts and is compatible with 24 teeth. Constructed from high carbon steel, this sprocket ensures durability and strength. The tapered bushing provides a secure fit, minimizing slippage on the shaft.

• Bore Type: Bushed
• Tooth Width: 0.227 inches
• Sprocket Type: Standard Roller Chain

Product Highlights

This sprocket is ideal for mechanical power transmission applications, offering reliable performance in various setups. It is manufactured to meet ANSI standards, ensuring quality and compatibility with other manufacturers' taper bushings.

Product Information

Standard Information

• Brand: Martin
• Country Of Origin: United States

Technical Specifications

• MPN: 41BTB24
• Material: Steel
• Pitch Type: Single
• Bushing Size: 1610
• Hub Diameter: 3 inches
• Number Of Teeth: 24
• Outside Diameter: 4.0980 inches
• Pitch Diameter: 3.8306 inches
