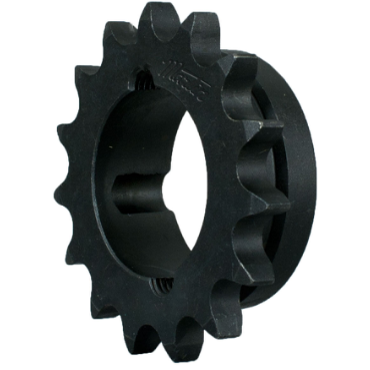

Martin 41BTB20 Bushing Bore Roller Chain Sprocket - Taper Locking, 41 / 1/2 in, 20 Teeth, 1610 Bushing

Product Description

The Martin 41BTB20 is a taper locking bushing bore roller chain sprocket designed for effective mechanical power transmission. This sprocket features a tapered bushing that provides a secure fit on the shaft and enhances performance with a precise grip.

• Constructed from high carbon steel for durability
• Compatible with standard roller chain sizes
• Manufactured to meet ANSI standards for quality

Product Highlights

This chain sprocket is ideal for use with 41 chain sizes. It is suitable for various industrial applications where reliable power transmission is needed.

Product Information

Standard Information

• Brand: Martin
• Country Of Origin: United States

Technical Specifications

• MPN: 41BTB20
• Bushing Type: Taper Lock Bushing
• Bushing Size: 1610
• Number Of Teeth: 20
• Pitch Diameter: 3.1962 inches
• Outside Diameter: 3.4570 inches
• Hub Diameter: 2-7/8 inches
• Length Through Bore: 1.0000 inches
• Chain Number & Pitch: 41 / 0.5 inches
• Storage Dimension Width: 3.625 inches
• Storage Dimension Height: 1.0625 inches
• Storage Dimension Length: 3.625 inches
