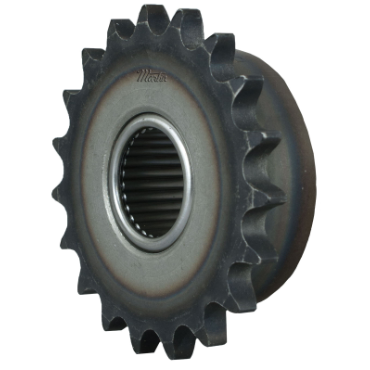

Martin 40NB19H1 Needle Bearing Idler Sprocket

Product Description

The Martin 40NB19H1 is a needle bearing idler sprocket designed for efficient chain motion management. This sprocket features a one-inch bore and is suitable for 40 chain specifications. It boasts a robust steel construction which enhances durability and resistance to wear in demanding applications.

• Can adjust chain tension and direction of motion
• Made with steel for durability
• Includes needle bearing for smooth operation

Product Highlights

This idler sprocket is ideal for various industrial applications, providing reliable performance in conveyor systems and other machinery requiring effective chain tensioning and direction modification.

Product Information

Standard Information

• Brand: Martin
• MPN: 40NB19H1

Technical Specifications

• Pitch Diameter: 3.038 inches
• Single Strand Tooth Thickness: 0.284 inches
• No. of Strands Across: 1
• No. of Teeth: 19
• Bore Type: Bearing
• Material: Steel
• Bearing Type: Needle Bearing
• Chain Tightener Part No.: E5006
• Hub Diameter: 2.5 inches
• Caliper Diameter: 2.715 inches
• Outside Diameter: 3.3 inches
• Series: NB
• Chain Pitch: 0.5 inches
• Length Through Bore: 1 inch
• Overall Length: 1 inch
• Sprocket Type: B
• Inch/Metric: Inch
• Hardened Teeth: With Hardened Teeth
• Bore Size: 1 inch
• Chain No.: 40
• Weight: 1.1 LB
• EAN or UPC: 697950341637
