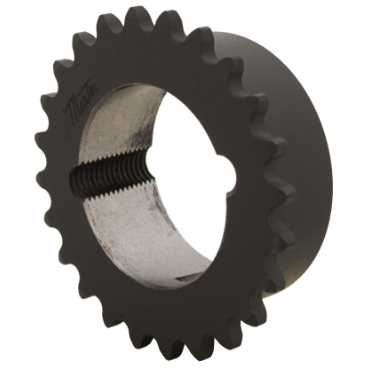

Martin 40BTB24H Bushing Bore Roller Chain Sprocket - Taper Locking, 40 / 1/2 in, 24 Teeth, 1610 Bushing

Product Description

The Martin 40BTB24H is a taper locking bushing bore roller chain sprocket designed for efficiency and durability. This sprocket has twenty-four teeth and is compatible with a chain size of forty with a half-inch pitch. Constructed from high carbon steel, it meets ANSI standards to ensure reliable performance in mechanical systems.

• Made from hardened high carbon steel for longer life.
• Features a tapered bushing for secure fitting and easy installation.
• Engineered for precise machining and uniformity in operation.

Product Highlights

This roller chain sprocket is ideal for use in various mechanical power transmission applications, ensuring consistent performance and a high-quality finish.

Product Information

Standard Information

• Brand: Martin
• Product Type: Roller Chain Sprocket

Technical Specifications

• Pitch Type: Single
• Tooth Width: 1 inch
• Hub Diameter: 3-1/4 inches
• Overall Width: 1 inch
• Hardened Teeth: Yes
• Number Of Hubs: 1
• Pitch Diameter: 3.8306 inches
• Number Of Teeth: 24
• Tooth Thickness: 0.2840 inches
• Caliper Diameter: 3.5186 inches
• Outside Diameter: 4.0980 inches
• Surface Treatment: Protective Coating
• Bushing Bore Range: 1/2 to 1-5/8 inches
• Chain Roller Width: 0.3125 inches
• Length Through Bore: 1.0000 inches
• Chain Number & Pitch: 40 / 1/2 inch
• Hub Outside Diameter: 3.2500 inches
• Chain / Sprocket Type: Standard Roller Chain
• Chain Roller Diameter: 0.3120 inches
• Manufacturer UPC Number: 697950043098
• Storage Dimension Width: 4.3125 inches
• Number Of Strands Across: 1
• Storage Dimension Height: 1.0625 inches
• Storage Dimension Length: 4.3125 inches
