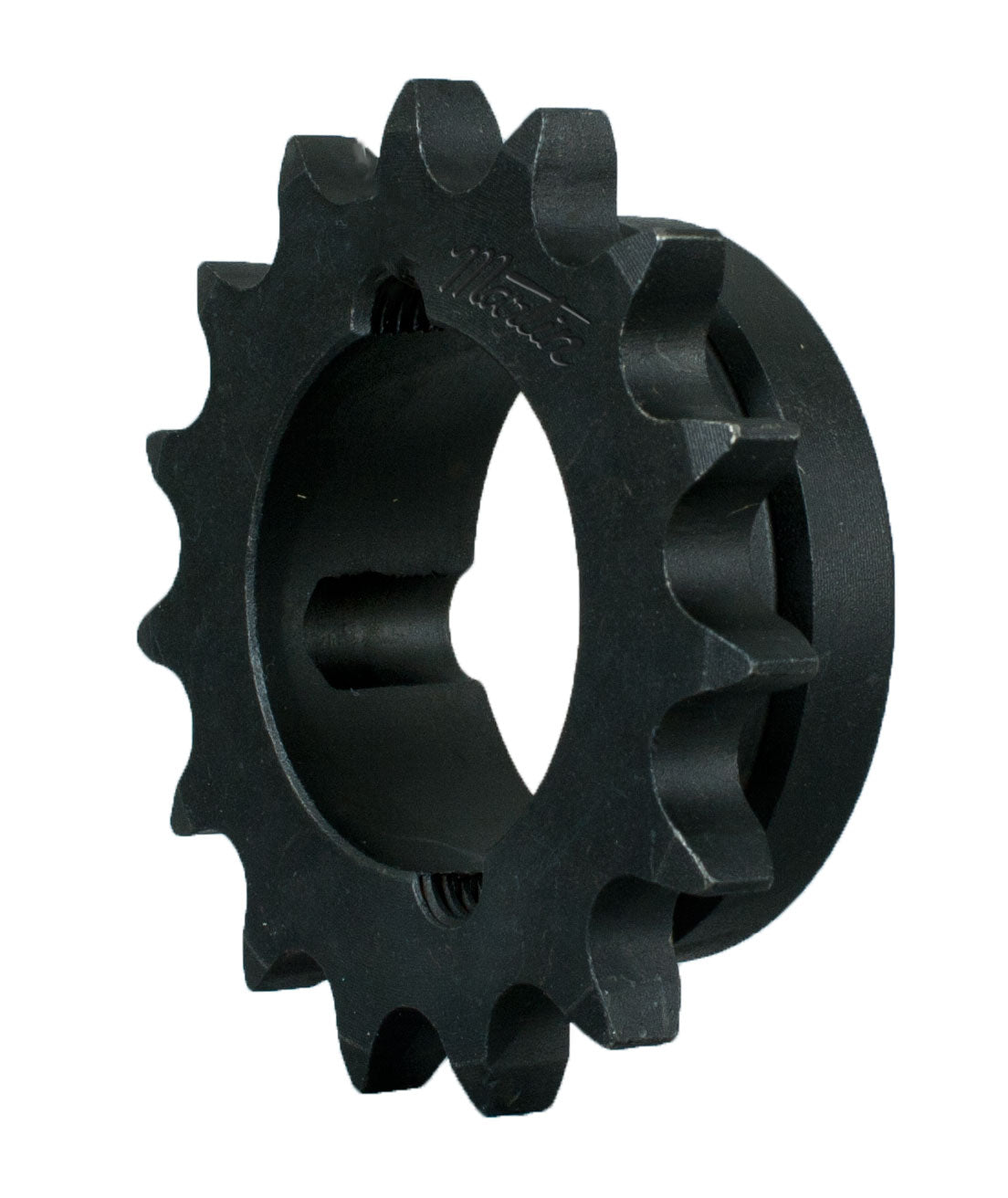

Martin 40BTB14H MSG 2.491 in OD Taper Bushed Type B Roller Chain Sprocket

Product Description

The Martin Sprocket & Gear 40BTB14H is a taper bushed type B single pitch roller chain sprocket. This sprocket features hardened teeth designed for durability during operation. It has an outside diameter of two point four nine one inches and is suited for #40 chain with fourteen teeth. The pitch measures one half inch, ensuring compatibility with various machinery.

• Hardened taper bushed sprocket.
• Compatible with #40 chain.
• Manufactured with high carbon steel for strength.

Product Highlights

The Martin Sprocket is suitable for heavy-duty applications. Its tight grip ensures secure operation when used with compatible chains.

Product Information

Standard Information

• Brand: Martin
• Manufacturer: Martin Sprocket & Gear

Technical Specifications

• MPN: 40BTB14H
• Outside Diameter: 2.491 in
• Chain Size: #40
• Number of Teeth: 14
• Pitch: 1/2 in
• Hub Diameter: 1.813 in
• Length Through Bore: 7/8 in
• Bushing Type: 1008 Taper Lock
• Pitch Diameter: 2.247 in
• Material: Steel
• Country of Origin: US
• Standards: PROP65 warning for chemical exposure
