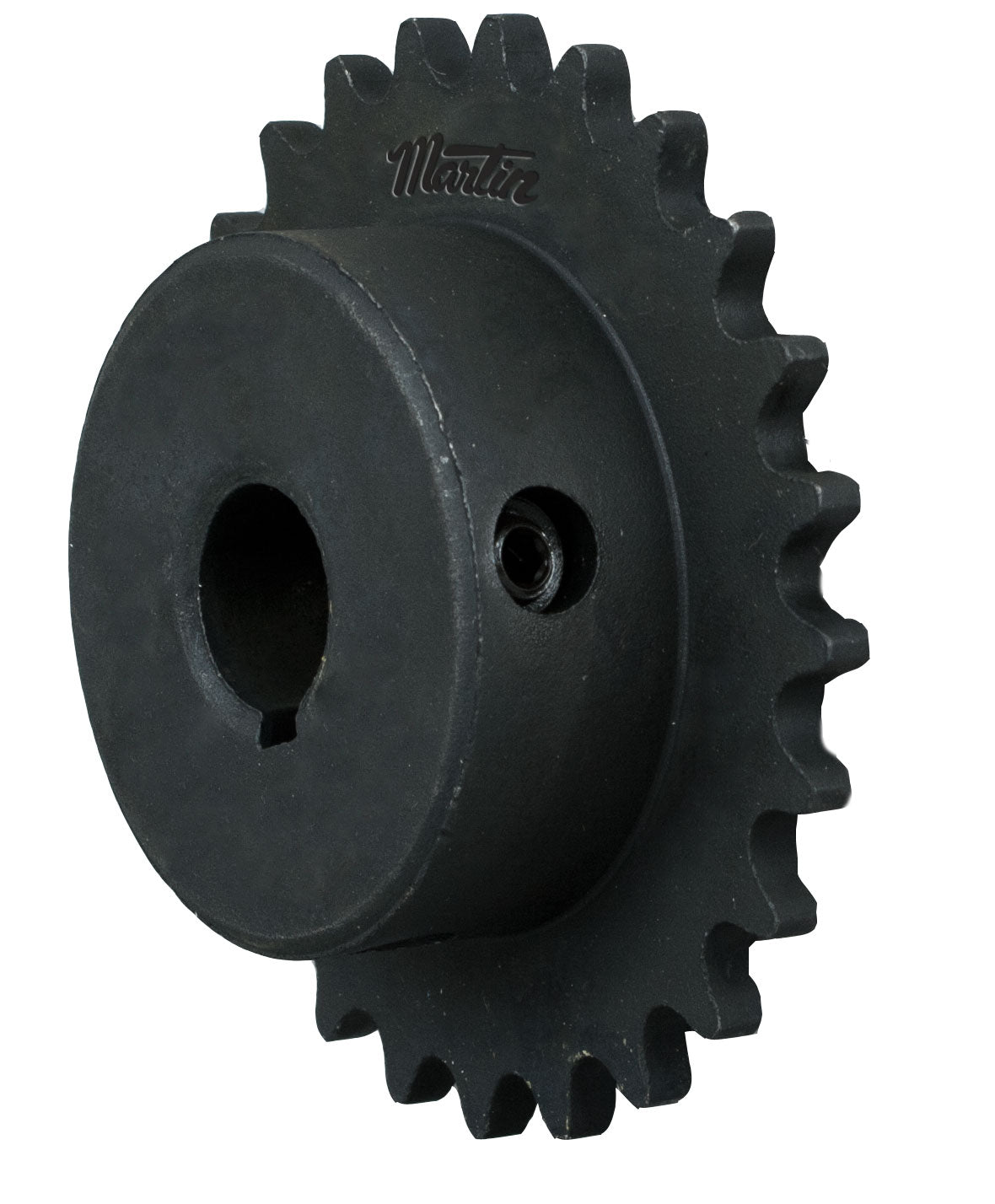

Martin 40BS361 Bore Type BS Single Pitch Roller Chain Sprocket 1 in Dia Bore 6.015 in OD #40 Chain 36 Teeth

Product Description

The Martin 40BS361 is a bored-to-size Type BS single pitch roller chain sprocket. It features a one inch bore diameter and an outside diameter of six point zero fifteen inches. This sprocket is designed for use with #40 chain and has thirty-six teeth with a half inch pitch.

• Includes two setscrews
• Keyway is positioned on the centerline of the tooth
• Stocked with finished bores for immediate use

Product Highlights

This sprocket is made from steel providing durability and reliability. It is precise and ensures consistent performance, suitable for various applications in power transmission.

Product Information

Standard Information

• Brand: Martin Sprocket & Gear
• Part Number: 40BS36 1 MSG

Technical Specifications

• Bore Diameter: 1 in
• Chain Size: #40
• Hub Diameter: 3-1/4 in
• Keyway Size: 1/4 x 1/8 in
• Length Through Bore: 1 in
• Material: Steel
• Number of Teeth: 36
• Pitch Diameter: 5.737 in
• Pitch: 1/2 in
• Screw Size: 5/16-18 x 5/16 in
