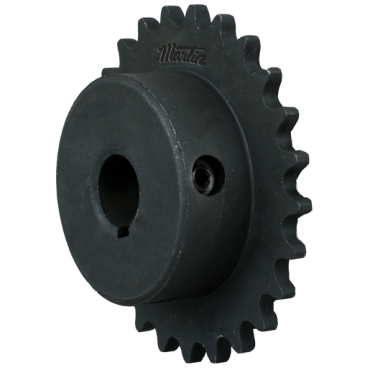

Martin 40BS24HT5/8 Saber Finished Bore Sprocket - Bored to Size, 0.6250 in Bore, 24 Teeth, Steel Material

Product Description

The Martin 40BS24HT5/8 Saber Finished Bore Sprocket offers a practical solution for mechanical power transmission needs. This sprocket is made from high carbon steel and features a bore size of 0.6250 inches. It is designed with 24 teeth and comes with hardened teeth for improved durability.

• Manufactured to ANSI standards
• Includes two set screws keyed on the centerline of the tooth
• Precise machining minimizes run out

Product Highlights

This product is ideal for various applications where power transmission is essential. Its design ensures that it meets high strength and length requirements.

Product Information

Standard Information

• Brand: Martin
• Country Of Origin: UNITED STATES

Technical Specifications

• Tooth Width: 0.2840 inches
• Hub Diameter: 3.25 inches
• Bore Diameter: 0.6250 inches
• Pitch Diameter: 3.8306 inches
• Chain Number & Pitch: 40 / 1/2 inches
• Outside Diameter: 4.0980 inches
• Length Through Bore: 1.0000 inches
• Maximum Bore Diameter: 2.25 inches
