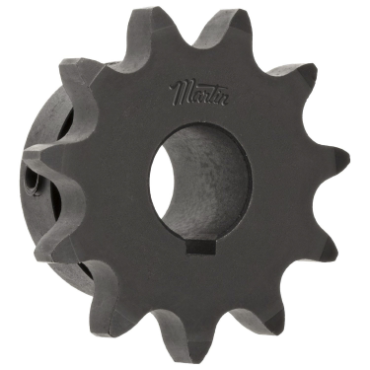

Martin 40BS19HT1 No. 40 - 1/2 Pitch - Single - Saber Tooth Hardened - Bored to Size Sprocket

Product Description

The Martin 40BS19HT1 is a finished bore sprocket designed to meet specific ANSI B29.1-1975 standards. This sprocket features a one inch finished bore and is constructed from steel with hardened teeth to ensure durability. It has a pitch diameter of three point zero three eight inches and an outside diameter of three point two nine six inches.

• Compromises of 19 teeth for seamless chain engagement.
• Equipped with a keyway of one-fourth by one-eighth inches for easy installation.
• Manufactured for superior performance in mechanical power transmission applications.

Product Highlights

This sprocket is ideal for applications requiring precise and reliable movement in roller chain systems.

Product Information

Standard Information

• Brand: Martin
• MPN: 40BS19HT1

Technical Specifications

• Hardened Teeth: With Hardened Teeth
• Pitch Diameter: 3.038 inches
• Outside Diameter: 3.296 inches
• Length Through Bore: 1 inch
• Chain Number: 40
• No. of Teeth: 19
• Material: Steel
• Keyway Size: 1/4 x 1/8 inches
