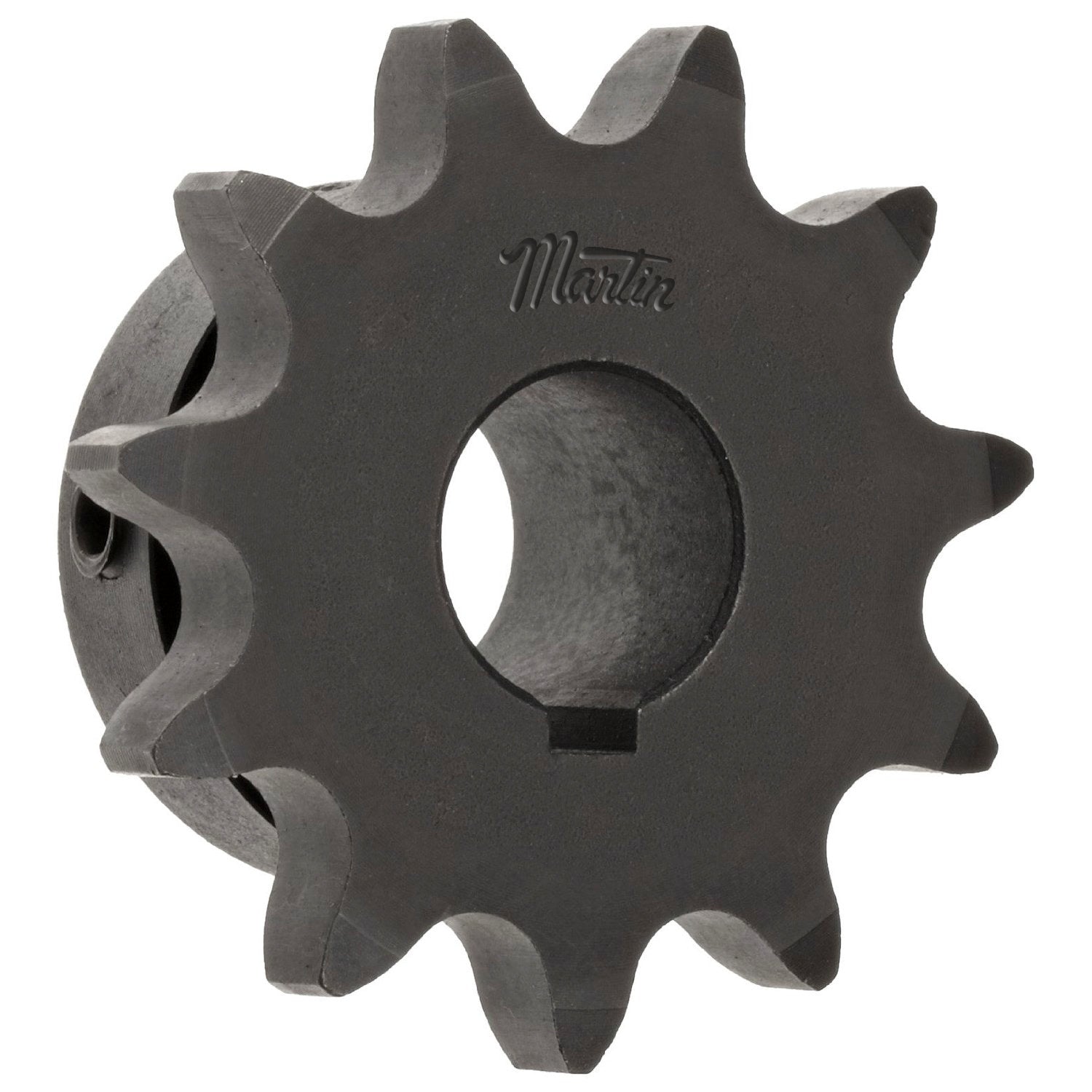

Martin 40BS193/4 Bored-to-Size Sprocket

Product Description

The Martin 40BS193/4 is a bored-to-size roller chain sprocket designed for use with Type BS single pitch roller chains. It features a three-fourth inch internal bore diameter and a three-point two nine six inch outside diameter. This sprocket is optimized for efficient power transmission, making it suitable for various machinery applications.

• Includes keyway and setscrews for easy installation.
• Manufactured from steel for strength and durability.
• Compatible with #40 chain systems.

Product Highlights

The Martin 40BS193/4 sprocket is a precision-engineered component that meets high manufacturing standards. It is used in various power transmission systems to ensure reliable performance.

Product Information

Standard Information

• Brand: Martin Sprocket & Gear
• Manufacturer Part Number: 40BS193/4

Technical Specifications

• Bore Diameter: 3/4 in
• Chain Size: #40
• Hub Diameter: 2-1/2 in
• Includes: (2) Setscrews
• Keyway Size: 3/16 x 3/32 in
• Length Through Bore: 1 in
• Material: Steel
• Number of Teeth: 19
• Pitch: 1/2 in
• Pitch Diameter: 3.038 in
• Screw Size: 1/4-20 x 1/4 in
