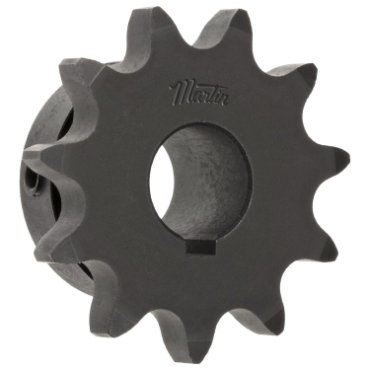

Martin 40BS1613/16 Bored to Size Sprocket - 40 / 1/2 in

Product Description

The Martin 40BS1613/16 is a finished bore sprocket designed for standard roller chains with a pitch of 1/2 inch. This sprocket offers a bore diameter of 1.1875 inches and features 16 teeth. It is made from high carbon steel for strength and durability.

• Features keyways and setscrews for secure mounting.
• Precision machined for a consistent finish.
• Concentric bore design reduces run-out for better performance.

Product Highlights

This product is suitable for mechanical power transmission, ensuring reliable performance in various applications.

Product Information

Standard Information

• Brand: Martin
• MPN: 40BS1613/16
• Country of Origin: United States
• Minimum Order Quantity: 1

Technical Specifications

• Tooth Width: 0.284 inches
• Hub Diameter: 2 inches
• Bore Diameter: 1.1875 inches
• Pitch Diameter: 2.5629 inches
• Outside Diameter: 2.814 inches
• Length Through Bore: 0.875 inches
• Storage Dimensions: 2.875 inches (width), 15/16 inches (height), 2.875 inches (length)
• Number of Teeth: 16
