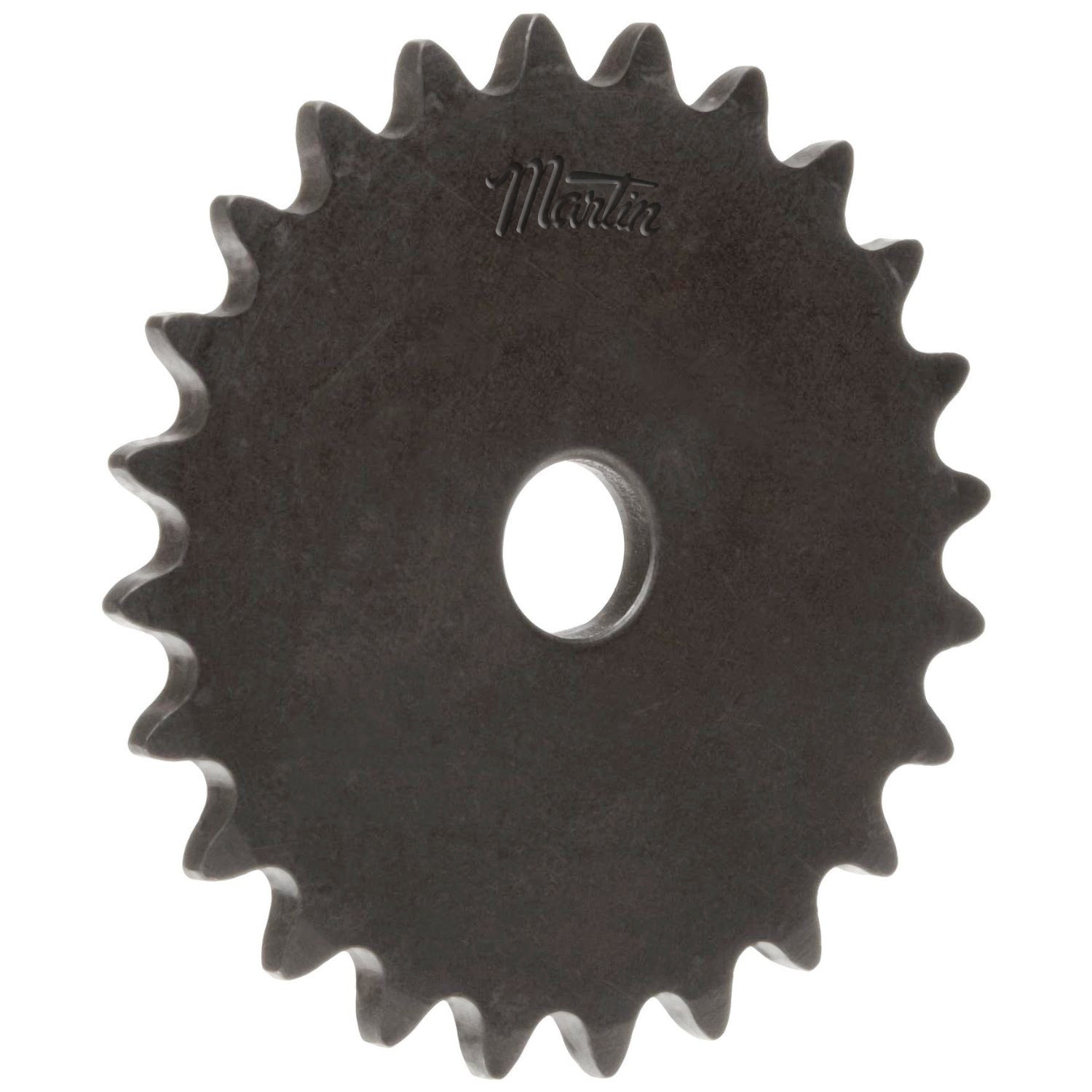

Martin 40A27 MSG Type A Single Strand Solid Stock Bore Roller Chain Sprocket

Product Description

The Martin 40A27 is a Type A Single Strand Solid Stock Bore Roller Chain Sprocket made from steel. It features a bore diameter of 5/8 inches and an outside diameter of 4.578 inches. This sprocket is designed for use with #40 chains and has 27 teeth, making it a reliable choice for various power transmission applications.

• Compatible with #40 chain
• Standard 1/2-inch pitch
• Durable steel construction

Product Highlights

The Martin 40A27 sprocket offers reliable performance in any standard power transmission setup. Its design allows for customization to fit specific operational needs.

Product Information

Standard Information

• Manufacturer: Martin Sprocket & Gear
• Type: Type A Single Strand Solid Stock Bore

Technical Specifications

• Bore Diameter: 5/8 inches
• Chain Size: #40
• Length Through Bore: 1 inch
• Material: Steel
• Number of Teeth: 27
• Pitch: 1/2 inches
• Pitch Diameter: 4.307 inches
• Standards/Approvals: ANSI B29.1 - 1975, CEMA Standard, ECCN: EAR99, MPTA Approved, NIBA Certified, PTDA Approved
