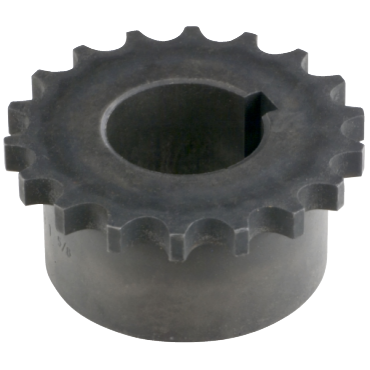

Martin 40167/8 Finished Bore Roller Chain Coupling Hub

Product Description

The Martin 40167/8 is a finished bore roller chain coupling hub. This item features a bore range of zero point eight seven five inches and is designed for use with chain number forty. It is ideal for applications requiring reliable and high torque capacity.

• Torque capacity exceeds the torque transmitted by standard shafting
• Bored to size for accurate fitting
• Made from durable steel for extended use

Product Highlights

This coupling hub offers a strong and reliable connection in chain drives, making it suitable for various mechanical applications.

Product Information

Standard Information

• Brand: Martin
• Part Number: 100813633

Technical Specifications

• Bore Range: 0.875 inches
• Bore Size: 0.875 inches - 7/8 inches
• Finished Bore: 7/8 inches
• Coupling Spacing: 0.28125 inches
• Chain No.: 40
• Material: Steel
• Length Through Bore: 1 1/8 inches
• Overall Length: 2 17/32 inches
• Outside Diameter: 3 1/32 inches
• Hub Diameter: 1 31/32 inches
• Number of Teeth: 16
• Weight: 0.76 LB
• EAN or UPC: 697950046792
• NSN Number: 3020-01-044-7046
