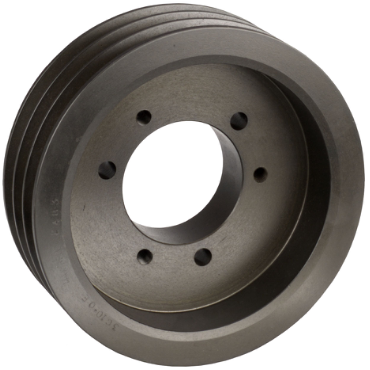

Martin 3C60SF Bushing Bore V-Belt Pulley - C Belt Section, 6 in Pitch Dia.

Product Description

The Martin 3C60SF is a bushing bore V-belt pulley designed for efficient power transmission. This product features a C belt section with three grooves and a pitch diameter of six inches. It is made from durable cast iron, ensuring reliability in various applications. The SF series bushing provides an easy installation and has interchangeable possibilities with other manufacturer’s Quick Detach bushings.

• Constructed from Class 30 Gray Iron for strength.
• Precise machining for a consistent finish.
• Compatible with a bushing bore range of 0.5000 to 2.9375 inches.

Product Highlights

This pulley is statically balanced, marked for maximum rim speed, making it suitable for high-speed applications while maintaining quality performance.

Product Information

Standard Information

• Brand: Martin
• MPN: 3C60SF
• Country of Origin: United States
• Minimum Order Quantity: 1

Technical Specifications

• Weight: 12 lbs
• Face Width: 3.375 inches
• Overall Width: 3.3 inches
• Pitch Diameter: 6 inches
• Outside Diameter: 6.4 inches
• Number of Grooves: 3
• Bushing Bore Range: 0.5000 to 2.9375 inches
• Length Through Bore: 2.0625 inches
