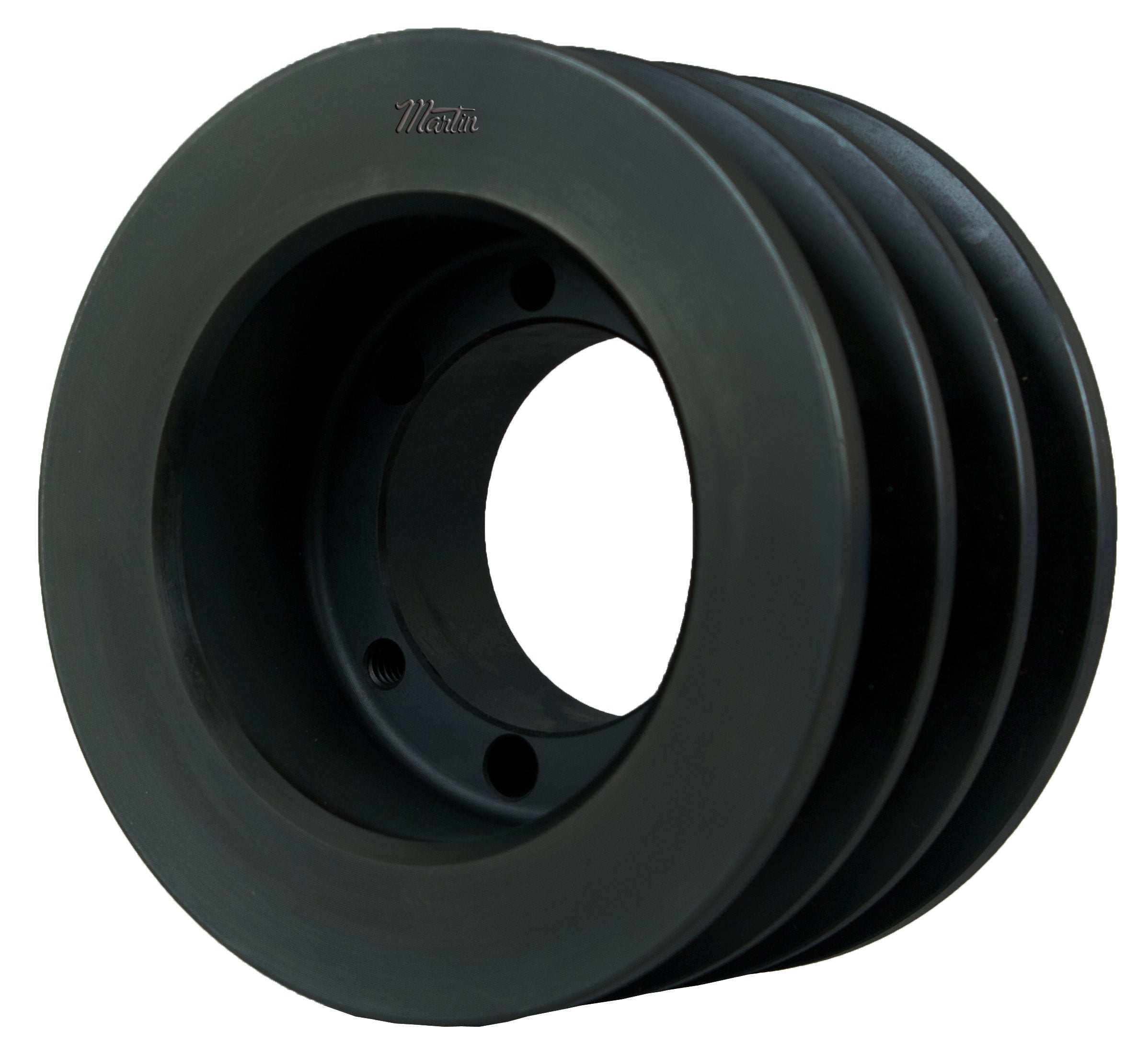

Martin 3B62SD 3 B 62 SD Solid Type A-1 Conventional Sheave 1/2 to 2 in QD Bushed

Product Description

The Martin 3B62SD is a solid Type A-1 conventional sheave designed for efficiency in power transmission applications. This particular sheave is compatible with A and B cross-section belts and features a QD bush for easy installation and removal. The sheave has a bore diameter that ranges from half an inch to two inches, with an outside diameter of six point fifty-five inches. It is suitable for various industrial applications that require reliable belt drives.

• Material: Class 30 gray iron with a tensile strength of thirty thousand psi.
• Three grooves with a pitch diameter of six point two inches.
• Statically balanced for minimal vibration during operation.

Product Highlights

This sheave is built to handle maximum speeds of six thousand five hundred feet per minute, with static balancing ensuring stable performance.

Product Information

Standard Information

• Brand: Martin
• Manufacturer Part Number: 3 B 62 SD

Technical Specifications

• Material: Steel
• Bore Type: QD Bushed
• Face Width: 2-1/2 in
• Bushing Type: SD
• Bore Diameter: 1/2 to 2 in
• Overall Length: 2-1/2 in
• Pitch Diameter: 6.2 in
• Outside Diameter: 6.55 in
• Number of Grooves: 3
• Suitable for Use With: A, B Cross Section Belts
