Martin 3B50SD 3 B 50 SD Solid Type A-1 QD Bushed Sheave

Product Description

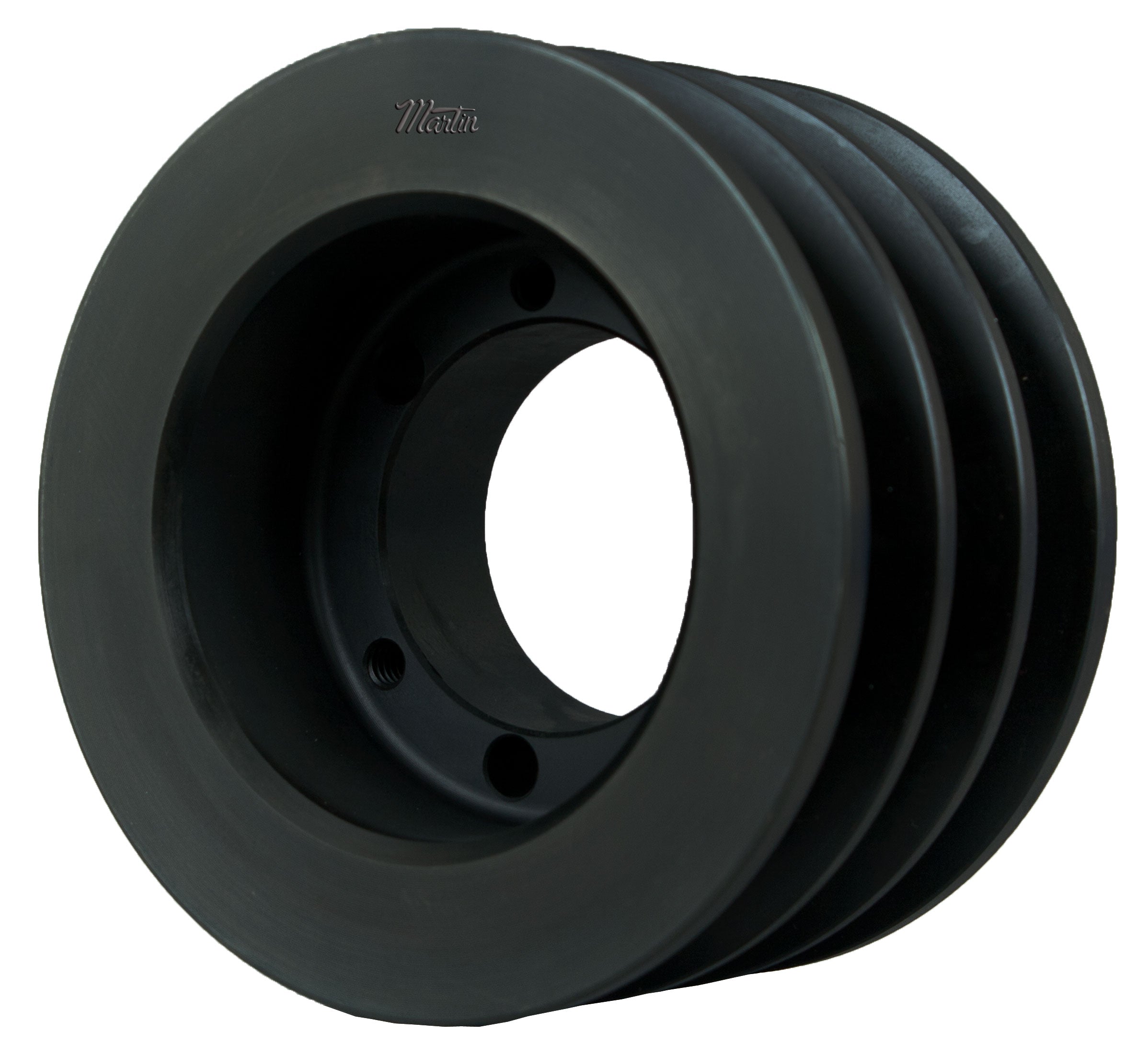

The Martin 3 B 50 SD is a conventional solid type A-1 sheave designed for use with A and B cross-section belts. This sheave features a QD® bushed bore with a diameter of one-half to two inches and an outside diameter of 5.35 inches.

• Manufactured from class 30 gray iron for strength.
• Static balancing for enhanced performance.
• Compatible with various belt types including A, B, C, and D.

Product Highlights

This product provides reliable power transmission with its precise design and construction. Ideal for various applications, it excels where durability and efficiency are required.

Product Information

Standard Information

• Brand: Martin
• Manufacturer: Martin Sprocket & Gear

Technical Specifications

• MPN: 3B50SD
• Bore Diameter: 1/2 to 2 in
• Bore Type: QD® Bushed
• Bushing Type: SD
• Face Width: 2-1/2 in
• Outside Diameter: 5.35 in
• Pitch Diameter: 5 in
• Number of Grooves: 3
• Overall Length: 2-1/2 in
• Suitable For Use With: A, B Cross Section Belts
