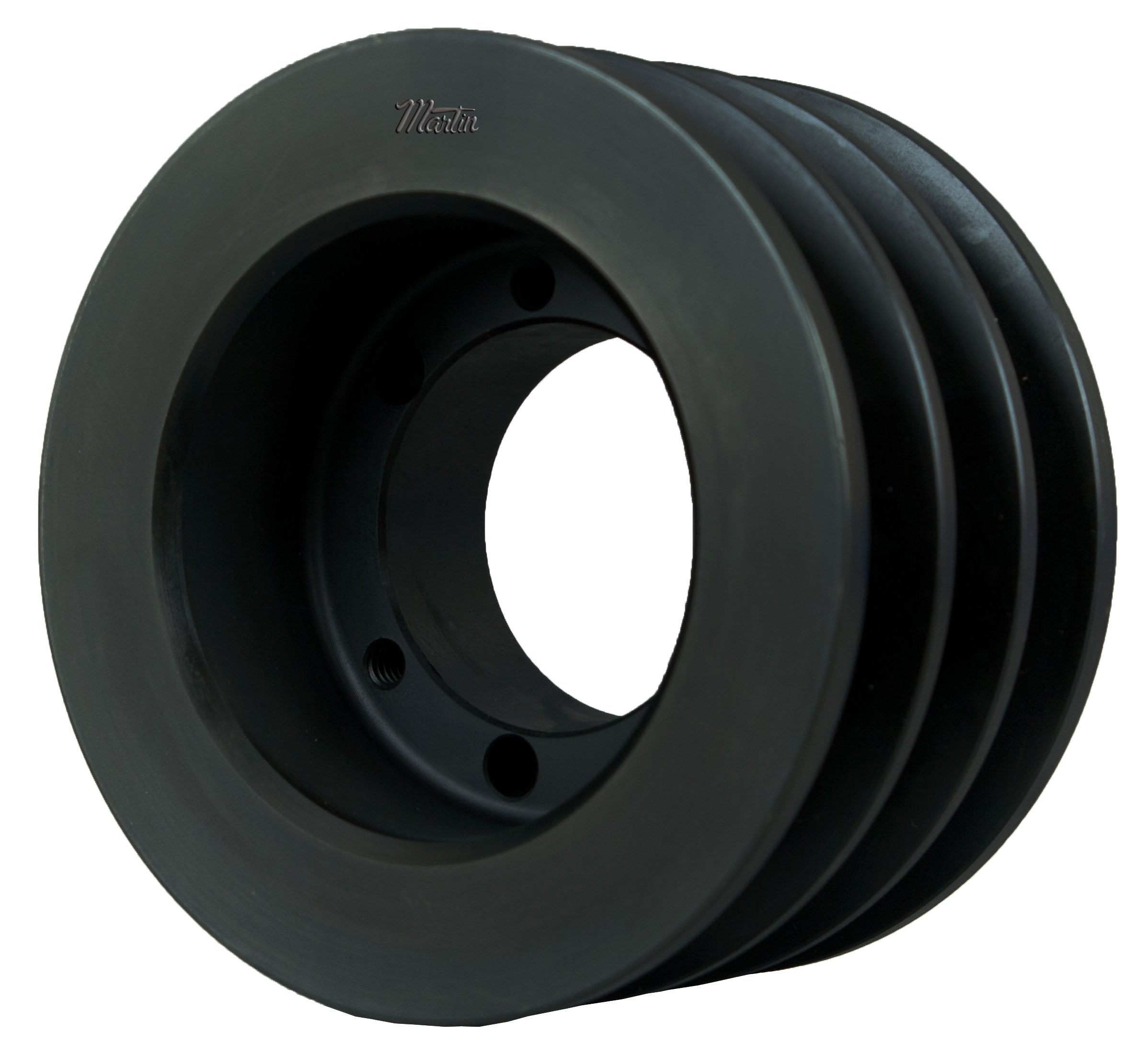

Martin 3B36SH Solid Type E-1 Conventional Sheave, 0.5 to 1.688 in QD® Bushed Bore, 3.95 in OD, 3 Grooves, 3.6 in Dia Pitch, 2-1/2 in W Face

Product Description

The Martin 3B36SH is a solid type E-1 conventional sheave designed for power transmission applications. This sheave features a bore diameter ranging from 0.5 to 1.688 inches and an outside diameter of 3.95 inches. It includes three grooves and a pitch diameter of 3.6 inches, making it suitable for A and B cross-section belts. Built from class 30 gray iron, this sheave is capable of withstanding a maximum speed of 6500 feet per minute. The Martin 3B36SH is statically balanced, ensuring stability during operation.

• Manufactured from class 30 gray iron for durability
• Designed for A and B cross-section belts
• Static balance ensures smooth operation

Product Highlights

The Martin 3B36SH sheave is engineered for reliability and precision. Its wide design supports various belt types, making it a versatile choice for professionals.

Product Information

Standard Information

• Brand: Martin
• Manufacturer: Martin Sprocket & Gear

Technical Specifications

• Bore Diameter: 0.5 to 1.688 in
• Bore Type: QD® Bushed
• Bushing Type: SH
• Face Width: 2-1/2 in
• Material: Steel
• Number of Grooves: 3
• Overall Length: 2.88 in
• Pitch Diameter: 3.6 in
• Outside Diameter: 3.95 in
• Suitable For Use With: A, B Cross Section Belts
• Type: Solid Type E-1
