Martin 3B34SH Solid Type E-1 Conventional Sheave QD Bushed Bore 3 B 34 SH

Product Description

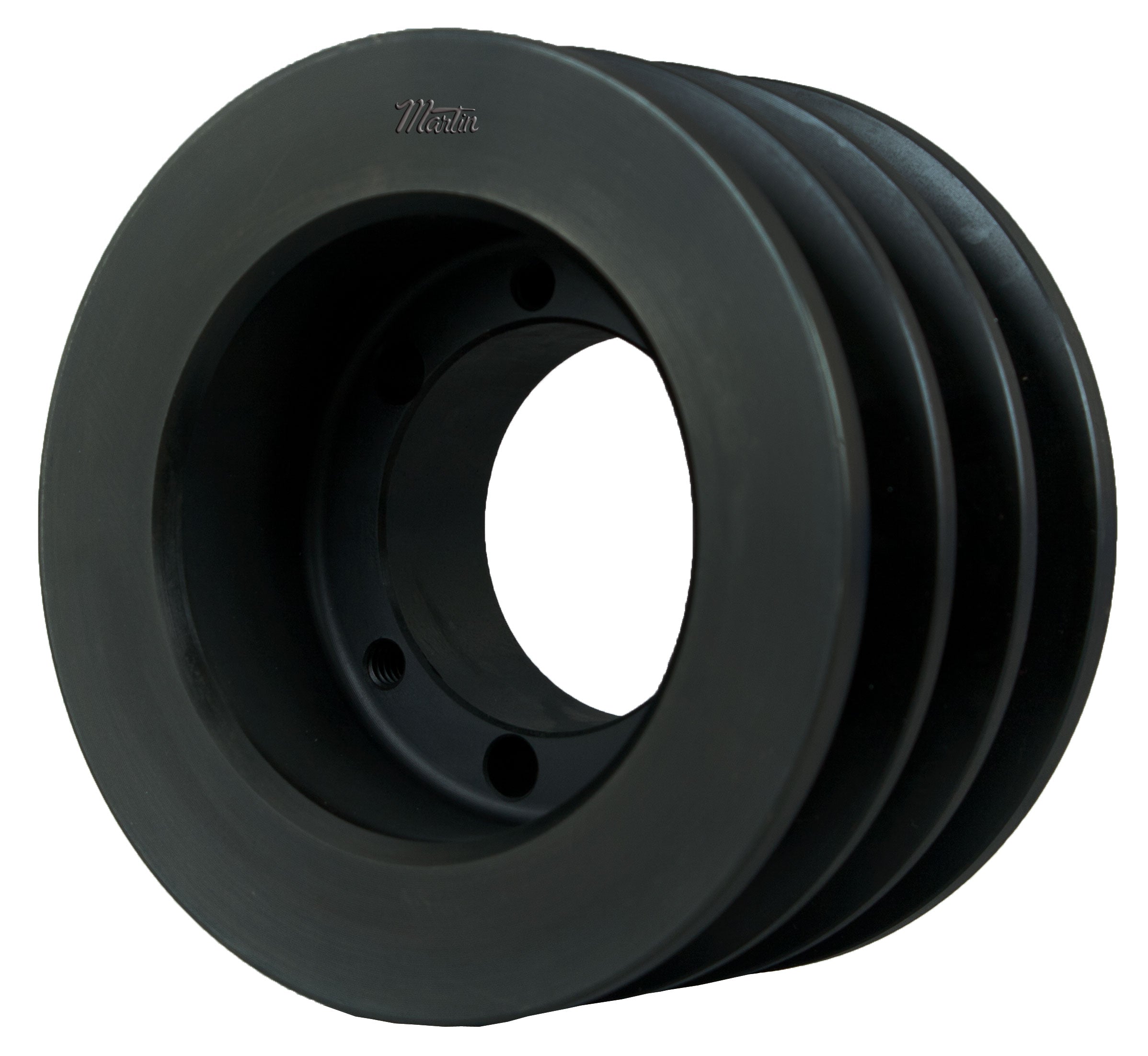

Martin 3B34SH is a solid type E-1 conventional sheave with a QD Bushed Bore. This model accommodates bore diameters from zero point five to one point six eighty-eight inches. The outside diameter measures three point seven five inches and features three grooves.

• Manufactured from class thirty gray iron
• Static balancing for smooth operation
• Compatible with A and B cross-section belts

Product Highlights

This sheave is designed for high-speed applications, capable of handling maximum speeds up to six thousand five hundred feet per minute. It ensures durability and reliable performance in various belt drive systems.

Product Information

Standard Information

• Brand: Martin Sprocket & Gear
• Type: Solid Type E-1

Technical Specifications

• Bore Diameter: 0.5 to 1.688 inches
• Face Width: 2.5 inches
• Overall Length: 3.06 inches
• Outside Diameter: 3.75 inches
• Pitch Diameter: 3.4 inches
• Number of Grooves: 3
• Bushing Type: SH
• Material: Steel
