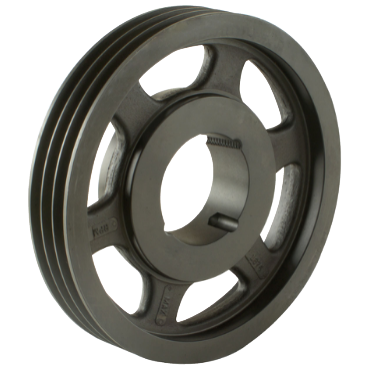

Martin 35V925TB 5V Series Hi-Cap Wedge Taper Bushed Sheave

Product Description

The Martin 35V925TB is a 5V series hi-cap wedge taper bushed sheave. This product is designed for various mechanical power transmission applications. It fits standard taper lock bushings, allowing easy installation and interchangeability. This sheave supports a maximum rim speed of six thousand five hundred feet per minute.

• 5V belt size with three grooves
• Outside diameter of nine point two five inches
• Taperlock bushing type

Product Highlights

The sheave is designed for high performance in demanding environments. Ideal for use in industrial settings where reliability is essential.

Product Information

Standard Information

• Brand: Martin
• MPN: 35V925TB

Technical Specifications

• Bushing Type: Taperlock
• Outside Diameter: 9.25 inches
• Length Through Bore: 2 inches
• Pitch Diameter: 9.15 inches
• Bushing Series: 3020
• Inch/Metric: Inch
• Bushing Part Number: 3020
• Type: Solid
• Belt Size: 5V
• No. of Grooves: 3
• Material: Cast Iron
• Weight: 21.0 pounds
• EAN or UPC: 697950155296
