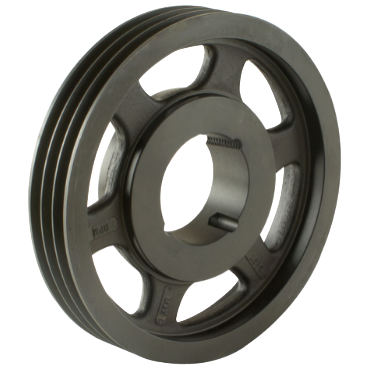

Martin 35V900TB 5V Series Hi-Cap Wedge Taper Bushed Sheave

Product Description

The Martin 35V900TB is a 5V Series Hi-Cap Wedge Taper Bushed Sheave known for its robust design. This sheave connects with taperlock bushings, offering reliable performance in various applications.

• Suitable for 5V belt systems
• Compatible with taperlock bushings for easy installation
• Designed for high rim speeds up to 6,500 feet per minute

Product Highlights

This sheave is crafted from durable cast iron, suitable for demanding industrial environments. It is designed to fit various belt configurations and is statically balanced for optimal performance.

Product Information

Standard Information

• Brand: Martin
• MPN: 35V900TB

Technical Specifications

• Belt Size: 5V
• Number of Grooves: 3
• Outside Diameter: 9.00 inches
• Pitch Diameter: 8.9 inches
• Bushing Series: 2517
• Bushing Type: Taperlock
• Bore Range Min: 0.5 inches
• Bore Range Max: 2.5 inches
• Length Through Bore: 1.75 inches
• Material: Cast Iron
• Weight: 20.0 lbs
• Knuckle Width: 0.625 inches
